Automobile Catalyst
Product Overview
Exhaust emissions from gasoline engine operations are comprised of CO, hydrocarbons (HC) and Nitrogen oxides (NOx). Gasoline engine operation is controlled at very narrow air/fuel ratio which is close to proper value so the emissions of CO, HC and NOx can be removed simultaneously on three way catalytic converters.

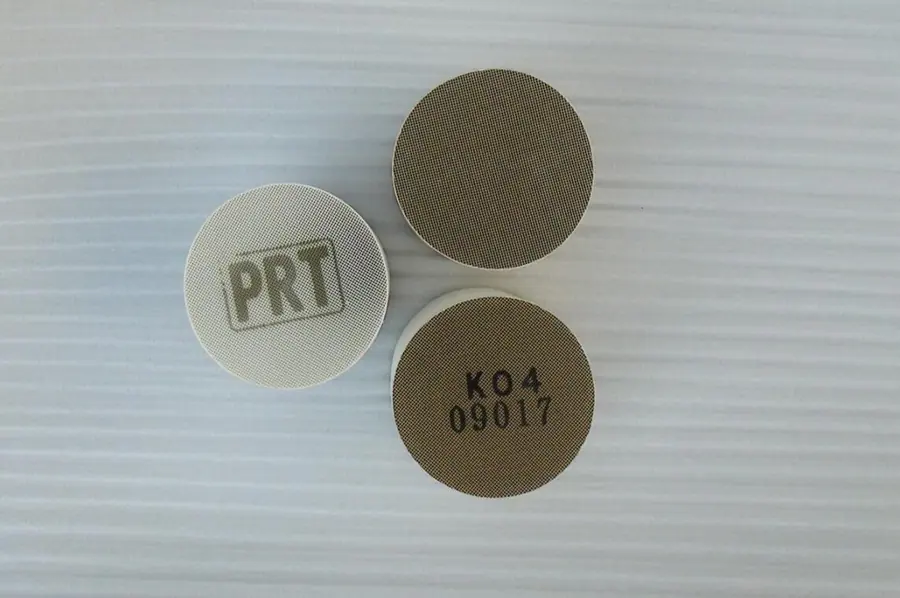

PRUITING® ceramic catalyst are based on the proprietary catalyst formulation of precious metal / base metal combination coated on ceramic honeycomb substrates. After coated with catalysts, this product is applied in catalytic converter of gasoline vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching Euro III,Euro IV and Euro V etc. emission standard both for OEM & Aftermarket.
PRUITING® coated substrates enable high emissions conversion systems by offering:
- Excellent substrate, aperture wall is thin, and its total area is larger than superficial area
- High performance, good thermal impact resistance and thermal shock resistance, good performance in cold start, low ignition temperature, quick temperature rise, little air resistance, and high conversion
- Low pressure drop
- 80,000 km Least Life Time
Key Benefits
Technical Features and Key Benefits
- Excellent substrate with thin aperture wall and total area larger than superficial area
- Good thermal impact resistance and thermal shock resistance
- Good performance in cold start with low ignition temperature and quick temperature rise
- Little air resistance and high conversion
- Low pressure drop
- 80,000 km least life time
Who It Is For
Buyers Who Specify This Product
- Gasoline vehicle OEM programmes
- Aftermarket catalytic converter manufacturers
- Exhaust system builders working to Euro III, Euro IV and Euro V
Problems It Solves
What It Fixes in the Exhaust Line
- CO, hydrocarbons and NOx that must be removed simultaneously from gasoline exhaust
- Poor cold start conversion before the catalyst reaches light-off
- Meeting Euro III, Euro IV and Euro V emission standards for OEM and aftermarket
Specifications
Published Sizes and Technical Data
Our universal specification and size:
(A) Specification of 100 aperture/inch2 - 600 aperture/inch2 typical products in round shape:
| NO | Specification | No. | Specification | No. | Specification |
|---|---|---|---|---|---|
| 1 | Ø76.2×50 | 11 | Ø101.6×123.4 | 21 | Ø118.4×120 |
| 2 | Ø80×60 | 12 | Ø103×100 | 22 | Ø118.4×152.4 |
| 3 | Ø83×60 | 13 | Ø103×130 | 23 | Ø118.4×136 |
| 4 | Ø83×125 | 14 | Ø106×80 | 24 | Ø150×100 |
| 5 | Ø83×85 | 15 | Ø106×130 | 25 | Ø170×100 |
| 6 | Ø 93 × 60 | 16 | Ø 106 × 152.4 | 26 | Ø 105.7 × 152.4 |
| 7 | Ø 93 × 101.6 | 17 | Ø 110 × 130 | 27 | Ø 105.7 × 130 |
| 8 | Ø 93 × 152.4 | 18 | Ø 110 × 150 | 28 | Ø 97 × 170 |
| 9 | Ø 100 × 100 | 19 | Ø 112 × 80 | 29 | Ø 194.5 × 101.6 |
| 10 | Ø 101.6 × 76 | 20 | Ø 118.4 × 100 | 30 | Ø 105.4 × 80 |
(B) Specification of 100 aperture/inch2 - 600 aperture/inch2 typical products in racetrack shape and ellipse:
| NO | Specification | NO. | Specification |
|---|---|---|---|
| 1 | 80×57×85 R21.5 | 11 | 169.7×80.8×152.4 R37.2 |
| 2 | 99.8×68.1×120.6 R33.6 | 12 | 177.8×114.3×170 R44.9 |
| 3 | 112×60×90 R28 | 13 | 169×85.7×127 R30 |
| 4 | 120.6×80×152.4 R39.6 | 14 | 127×61×120.7 R23 |
| 5 | 144×68×152.4 R28.4 | 15 | 130×85×150 R41 |
| 6 | 144.3×68.1×152.4 R32.2 | 16 | 112×60×80 R28.3 |
| 7 | 144.8×81.3×152.4 R37 | 17 | 148.6×83.4×81 R38 |
| 8 | 147×76.5×76 R30 | 18 | 148.6×83.4×163 R38 |
| 9 | 147×95×152.4 R36.6 | 19 | 131×86×80 R35 |
| 10 | 148×84×152.4 R38 | 20 | 125×80×125 R32 |
(C) Specification of 100 aperture/inch2 - 600 aperture/inch2 typical products in irregular shape:
| NO | Specification | NO. | Specification |
|---|---|---|---|
| 1 | Triangle144×84×76 | 11 | Trapezium122.3×104.4×80 |
| 2 | Triangle144×84×155 | 12 | Rectangle119.5×99.5×115 |
| 3 | Triangle143.5×84×155 | 13 | Irregular shape 114×105×115 |
| 4 | Triangle144×84×130 | 14 | Irregular shape 114×105×85 |
| 5 | Triangle144×84×152.4 | 15 | Irregular shape 114×105×110 |
| 6 | Triangle 144×84×50 | 16 | Irregular shape 114×105×80 |
| 7 | Trapezium112.2×92×152.4 | 17 | Pear shape 120.2×108×75 |
| 8 | Trapezium112.2×92×50 | ||
| 9 | Trapezium112×91×152.4 | ||
| 10 | Trapezium122.3×104.4×80 |
Figures above are reproduced from the PRT published specification. Dimensions in mm unless stated otherwise. Ø denotes diameter.
FAQ
Ceramic Catalyst FAQ
How does a three-way catalyst work on a gasoline engine?
Gasoline engine operation is controlled at a very narrow air/fuel ratio close to the proper value, so the emissions of CO, HC and NOx can be removed simultaneously on three way catalytic converters.
What is the coating based on?
It is based on a proprietary catalyst formulation of precious metal and base metal combination coated on ceramic honeycomb substrates.
Which emission standards can it reach?
The product is applied in the catalytic converter of gasoline vehicles to make the exhaust reach Euro III, Euro IV and Euro V emission standards, both for OEM and aftermarket.
What service life is published?
80,000 km least life time.
Which sizes are available?
The universal specification tables cover 100 aperture/inch2 to 600 aperture/inch2 in round, racetrack, ellipse and irregular shapes.
