Fuse Cutout Bushings
Porcelain bodies and complete drop-out fuse cutouts for pole-mounted transformer protection from 10kV through 33kV. 2 products in production with published figures,
View Details β
- Home
- Products
Every catalogue item we produce, grouped by family with the published figures on each card. Nothing here is paginated or hidden behind a filter.
Transformer Bushing Insulators
Porcelain bushings that carry transformer winding leads through the tank wall, insulate them to ground and hold them in place.
High Voltage Transformer Bushings
24kV Porcelain Transformer Bushing 150kV BIL
High Voltage Transformer Bushings
- Wet Power Frequency Withstand Voltage 60 kV
- Net Weight Per Bushing 8 kg
- Height 453 mm
DIN 20NF630A Transformer Bushing 440mm Creepage
High Voltage Transformer Bushings
- Nominal Creepage Distance 440 mm
- Net Weight 6.1 kg
- Height 385 mm
DIN 24kV 630A Transformer Bushing CD525
High Voltage Transformer Bushings
- Creepage Distance 525 mm
- Net Weight 6.8 kg
- Height 385 mm
DT 33kV 250A Porcelain Transformer Bushing
High Voltage Transformer Bushings
- Rated Voltage 33 kV
DIN 20NF250A Transformer Bushing CD480
Wall Bushings And Other Insulators
- Creepage Distance 480 mm
- Power Frequency Withstand Voltage 50 kV
- Lightning Impulse Withstand Voltage 125 kV
Russia 10kV Wall Bushing Ceramic Insulator IOR-10-3.75 II UKhL2
Low Voltage Transformer Bushings
- Voltage 10 kV
- Current 630 A
- Lightning Impulse Test Voltage 80 kV
DIN 42530 1NF250A Low Voltage Transformer Bushing
Wall Bushings And Other Insulators
- Creepage Distance 50 mm
- Net Weight 0.26 kg
IO-10/4 UKhL3 Post Bushing Insulator Catalogue Item
Screw Thread Transformer Bushings
- Class GOST Ceramic Construction 10 kV
ANSI 15kV Transformer Porcelain Bushing
Low Voltage Transformer Bushings
- Rated Transformer Bushing 15 kV
CB250 Outdoor Transformer Porcelain Bushing
Fuse Cutout Bushings
Outdoor Pole Mounted Drop-Out Fuse Cutout RW11-10
Low Voltage Transformer Bushings
- Impulse Voltage BIL On Both Ratings 110 kV
- Power Frequency Withstand Voltage 42 kV
DIN 42539 3kV 250A Transformer Bushing DT3KV-250A
Low Voltage Transformer Bushings
- Creepage Distance 120 mm
DIN 42530 1kV 1250A Transformer Bushing
High Voltage Transformer Bushings
- Current 1250 A
- Creepage Distance 50 mm
- Weight 0.26 kg
EN 50180 24kV 250A Transformer Bushing Type 3
High Voltage Transformer Bushings
DIN 30NF250 36kV Transformer Bushing
High Voltage Transformer Bushings
- High Voltage Class 36 kV
EN 50180 24kV 250A Porcelain Transformer Bushing
High Voltage Transformer Bushings
- Standard IEC60137

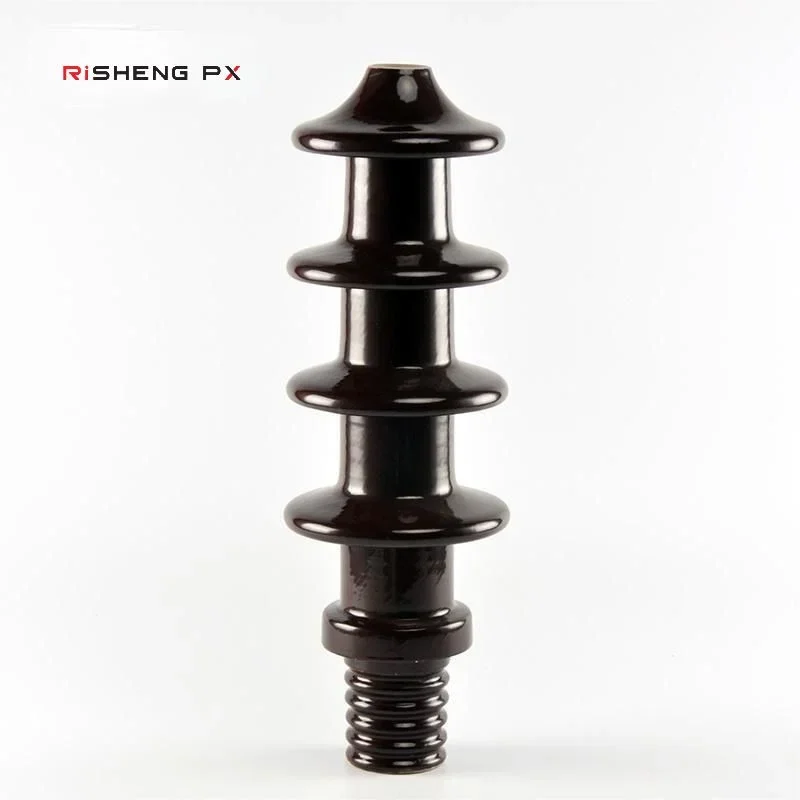

DIN 42531 30NF250A Transformer Bushing
High Voltage Transformer Bushings
- DIN 42531 30NF Pattern 250 A

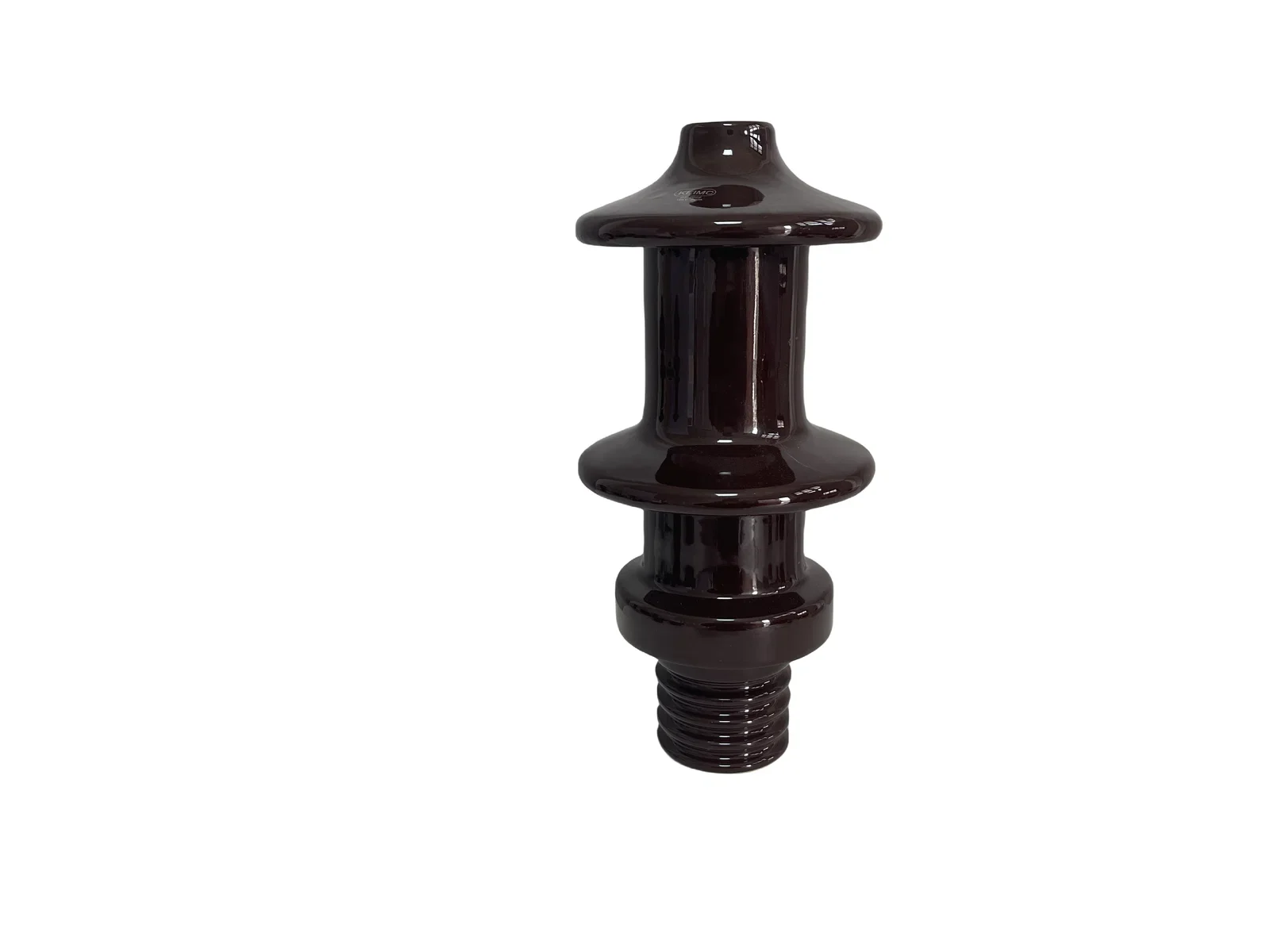

DIN 42531 10NF250A Transformer Bushing
Low Voltage Transformer Bushings
- DIN 42531 10NF Pattern 250 A

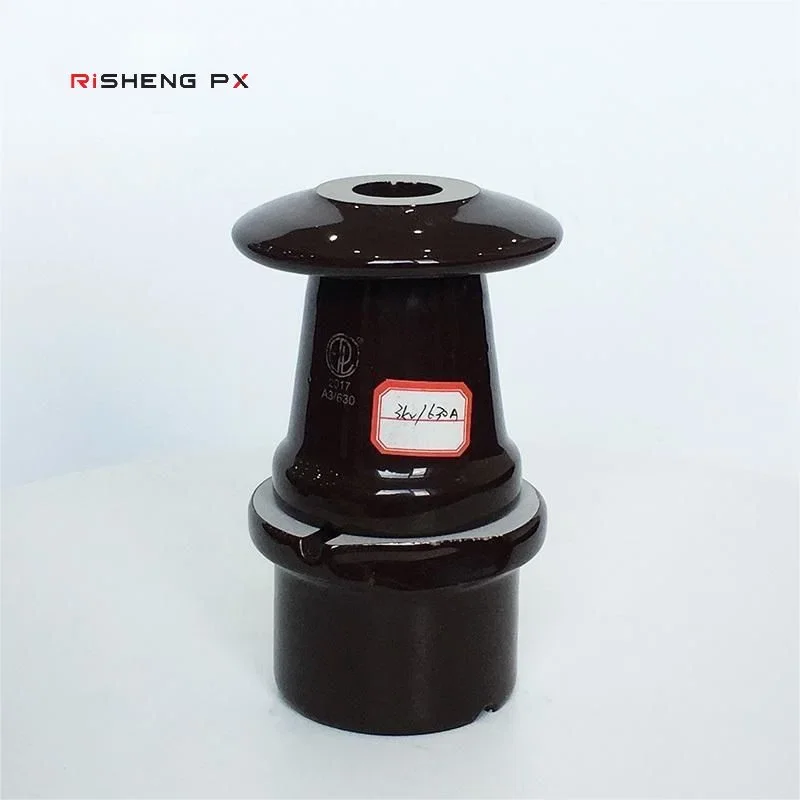

DIN 42539 3kV 630A Outdoor Transformer Bushing DT 3/630
Low Voltage Transformer Bushings
- Tank Hole Size 45 mm
- BIL 40 kV
- Creepage Distance 120 mm
DIN 42530 1kV 2000A Transformer Bushing
Wall Bushings And Other Insulators
- Creepage Distance At This Rating 75 mm
- Weight 1.29 kg
- Creepage Distance 50 mm
BUCHA 24kV 160A HV Porcelain Bushing C-450
Wall Bushings And Other Insulators
- Creepage Distance, Catalogued As C-450 450 mm
- Diameter 105 mm
- Height 550 mm

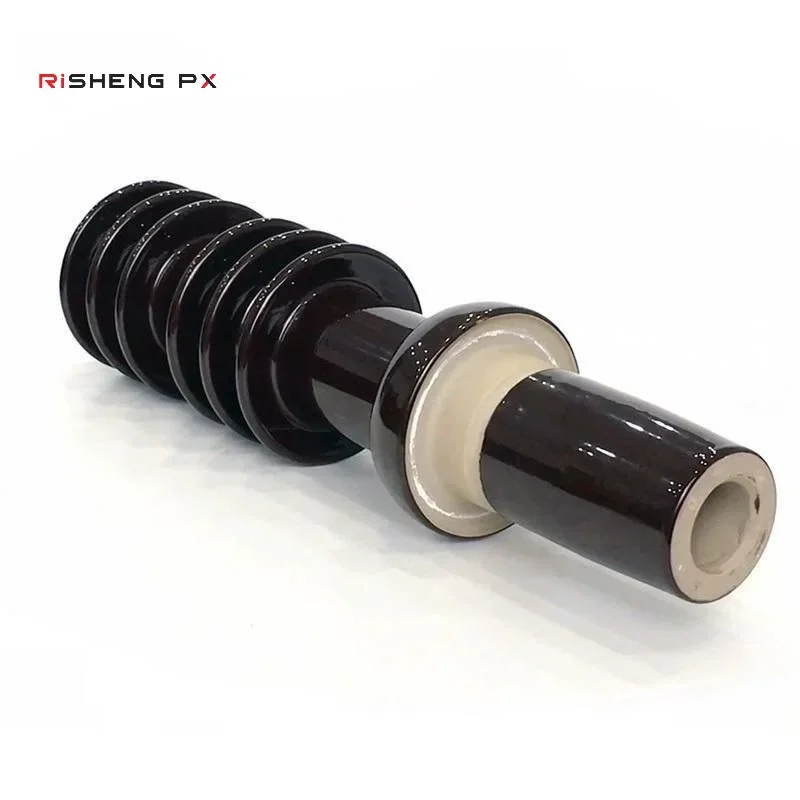

BUCHA 24kV 160A 450mm Ceramic Bushing Isolators
High Voltage Transformer Bushings
- Creepage Distance 450 mm
- Diameter 105 mm
- Height 550 mm
24kV To 36kV HV Porcelain Transformer Bushing
High Voltage Transformer Bushings
DIN 42531 20NF250A Transformer Bushing Isolators
High Voltage Transformer Bushings
- DIN 42531 20NF Pattern 250 A

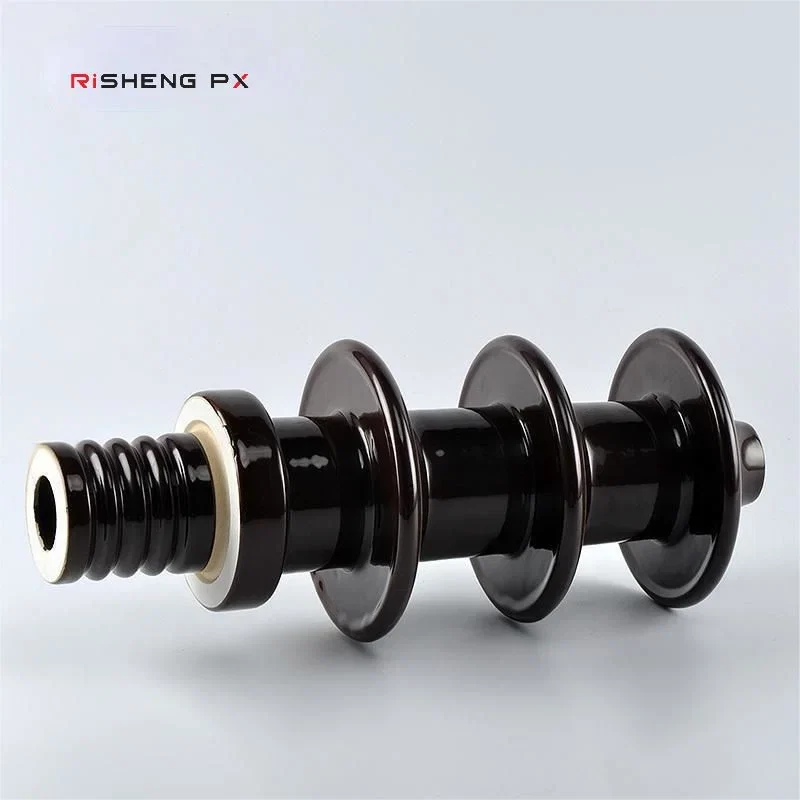

DIN 20NF250A Transformer Bushing Insulators
Screw Thread Transformer Bushings
- DIN 20NF Pattern 250 A
Threaded ANSI 18kV Transformer Bushing ANSI-18/50
High Voltage Transformer Bushings
- Overall Height H 541 mm
- Creep Distance 480 mm
- Weight 3.5 kg
18kV 25A HV ANSI Transformer Bushing
Fuse Cutout Bushings
- Creep Distance 480 mm
- Weight 3.5 kg
15kV To 33kV Fuse Cut Out Bushing Insulator
High Voltage Transformer Bushings
DIN 10NF250A Transformer Bushing For Oil-Immersed Transformers
Low Voltage Transformer Bushings
- DIN 10NF Pattern 250 A

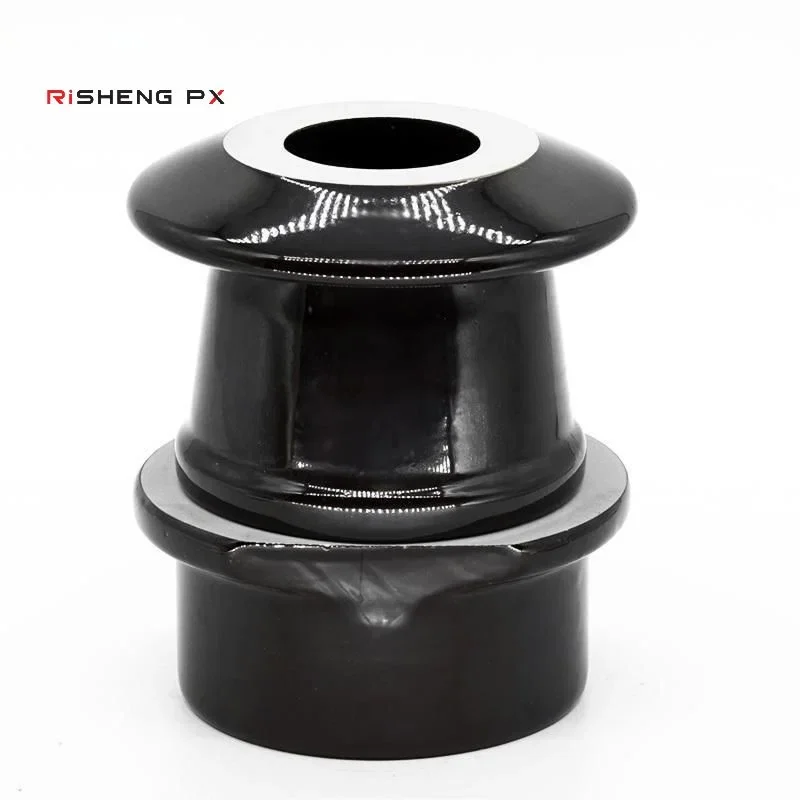

DIN 42539 3kV 1000A Transformer Bushing
Low Voltage Transformer Bushings
- Creepage Distance 125 mm
EN 50386 1kV 2000A Outdoor Transformer Bushing
Low Voltage Transformer Bushings
- Creepage Distance 75 mm
- Weight 1.29 kg
DIN 42530 1kV 630A Ceramic Bushing DT 1/630
Screw Thread Transformer Bushings
- Tank Hole Size 45 mm
- Creepage Distance 75 mm
- Weight 0.26 kg
1.2kV 400A Screw Thread Transformer Bushing
Screw Thread Transformer Bushings

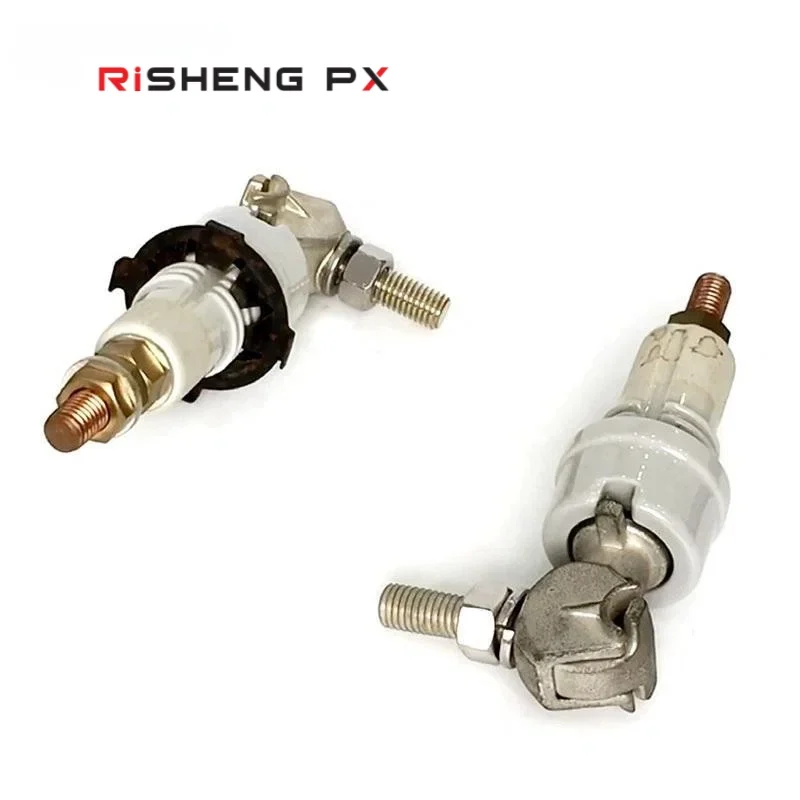

Threaded 1kV LV ANSI Transformer Bushing 30kV BIL
Screw Thread Transformer Bushings
- Rated Voltage 1 kV
- BIL 30 kV
1.2kV 160A Transformer Bushing Insulator
Low Voltage Transformer Bushings

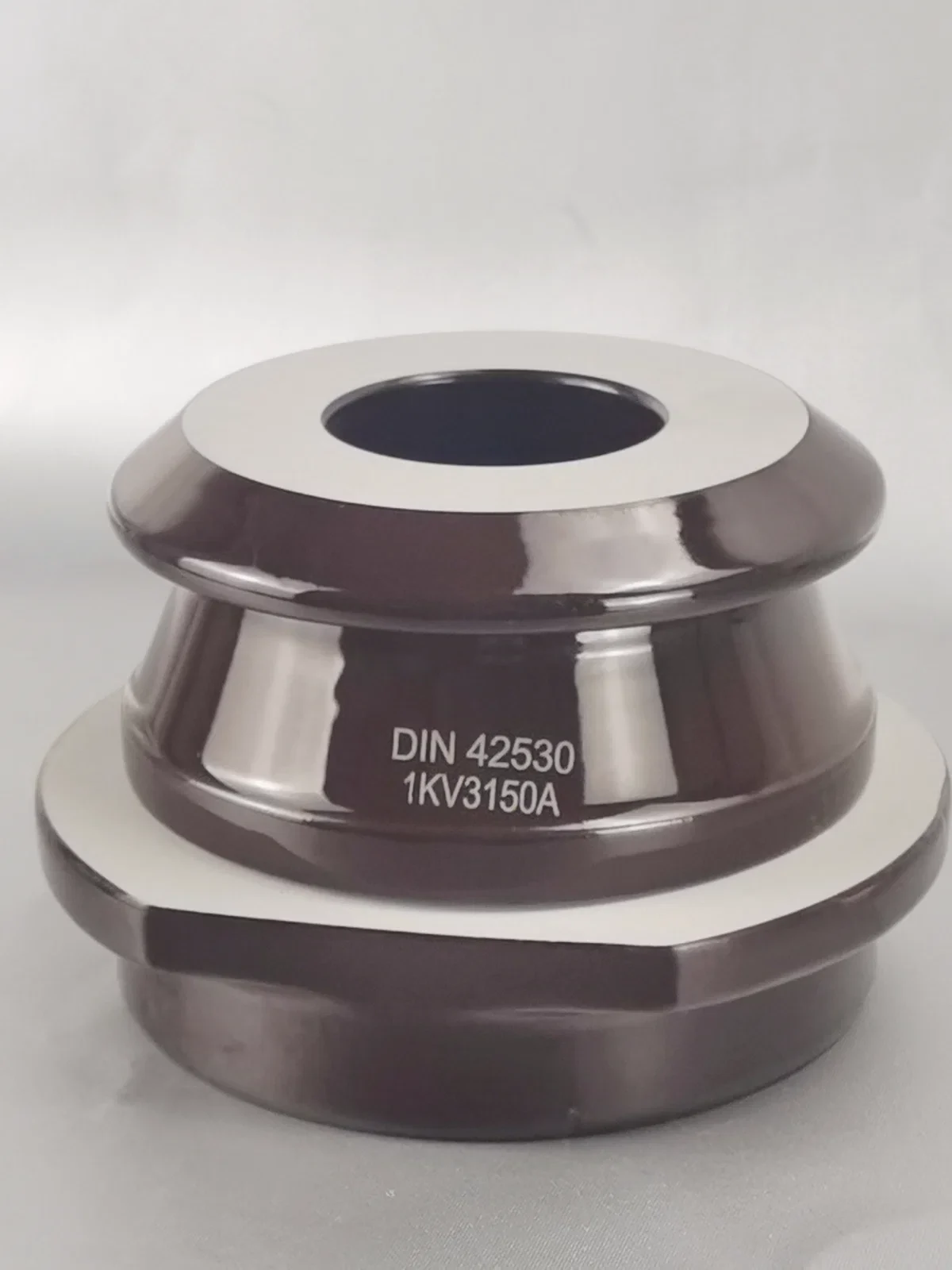

DIN 42530 1kV 3150A Transformer Bushing DT 1/3150
Low Voltage Transformer Bushings
- Tank Hole Size 90 mm
- Creepage Distance 75 mm

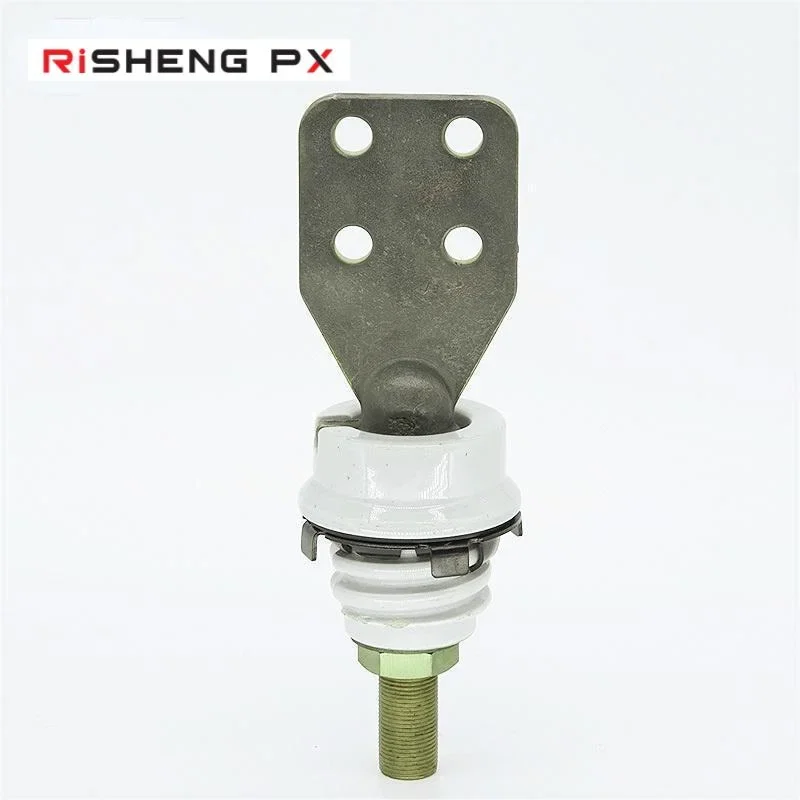

1.2kV 800A ANSI Low Voltage Bushing 30kV BIL
High Voltage Transformer Bushings
- Rated Voltage 1.2 kV
- BIL 30 kV
AS 15/50 Transformer Bushing Insulator 15kV
High Voltage Transformer Bushings
- Voltage 15 kV
- Height 485 mm
- Diameter 101 mm
AS 24/315 Transformer Bushing Insulator 24kV
Low Voltage Transformer Bushings
- Voltage 24 kV
- Height 505 mm
- Diameter 108 mm

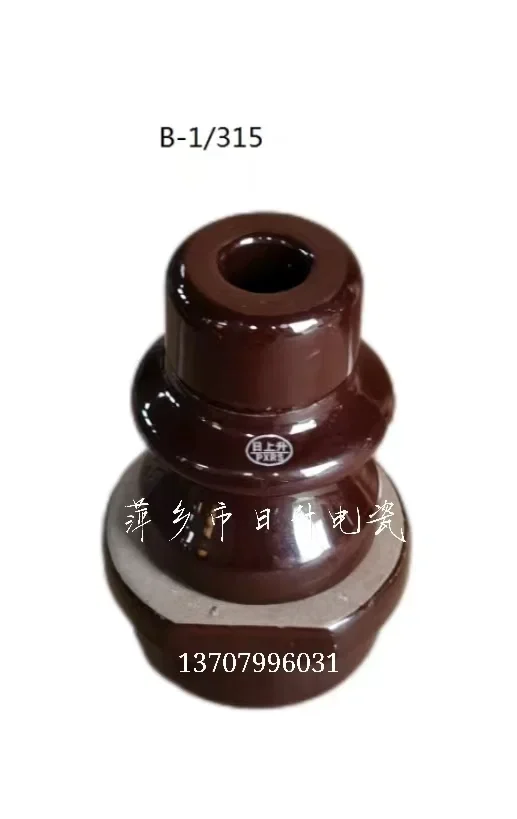

GB B-1/315 Transformer Bushing Insulator 1kV
High Voltage Transformer Bushings
- Voltage 1 kV
- Height 105 mm
- Diameter 65 mm
GB BLQ-10/315 Transformer Bushing Insulator 10kV
High Voltage Transformer Bushings
- Voltage 10 kV
- Height 240 mm
- Diameter 115 mm

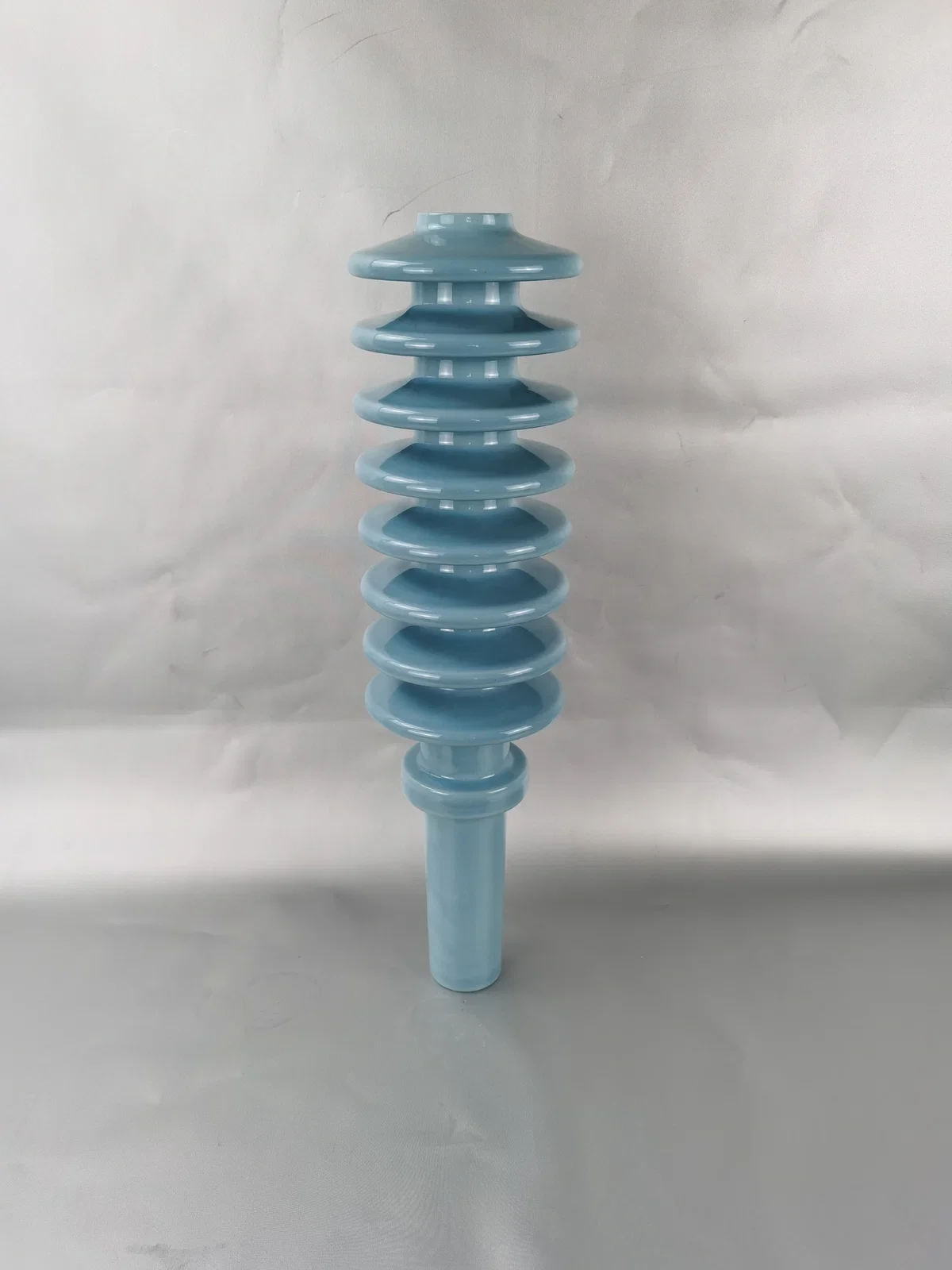

EN 36/250/P3 Transformer Bushing Insulator 36kV
- Voltage 36 kV
- Height 600 mm
- Diameter 155 mm
High Voltage Transformer Bushings
Bushings for the high voltage side of distribution and power transformers, from the 10kV class up to 36kV.
High Voltage Transformer Bushings
24kV Porcelain Transformer Bushing 150kV BIL
High Voltage Transformer Bushings
- Wet Power Frequency Withstand Voltage 60 kV
- Net Weight Per Bushing 8 kg
- Height 453 mm
DIN 20NF630A Transformer Bushing 440mm Creepage
High Voltage Transformer Bushings
- Nominal Creepage Distance 440 mm
- Net Weight 6.1 kg
- Height 385 mm
DIN 24kV 630A Transformer Bushing CD525
High Voltage Transformer Bushings
- Creepage Distance 525 mm
- Net Weight 6.8 kg
- Height 385 mm
DT 33kV 250A Porcelain Transformer Bushing
High Voltage Transformer Bushings
- Rated Voltage 33 kV
DIN 20NF250A Transformer Bushing CD480
High Voltage Transformer Bushings
- Creepage Distance 480 mm
- Power Frequency Withstand Voltage 50 kV
- Lightning Impulse Withstand Voltage 125 kV
10kV 250A Screw Thread Transformer Bushing For 10kVA To 333kVA
High Voltage Transformer Bushings
- Minimum Creepage Distance 270 mm
- Net Weight 2.66 kg
- Height 332 mm
EN 50180 24kV 250A Transformer Bushing Type 3
High Voltage Transformer Bushings
DIN 30NF250 36kV Transformer Bushing
High Voltage Transformer Bushings
- High Voltage Class 36 kV
EN 50180 24kV 250A Porcelain Transformer Bushing
High Voltage Transformer Bushings
- Standard IEC60137
DIN 42531 30NF250A Transformer Bushing
High Voltage Transformer Bushings
- DIN 42531 30NF Pattern 250 A
DIN 42531 10NF250A Transformer Bushing
High Voltage Transformer Bushings
- DIN 42531 10NF Pattern 250 A
24kV To 36kV HV Porcelain Transformer Bushing
High Voltage Transformer Bushings
DIN 42531 20NF250A Transformer Bushing Isolators
High Voltage Transformer Bushings
- DIN 42531 20NF Pattern 250 A
DIN 20NF250A Transformer Bushing Insulators
High Voltage Transformer Bushings
- DIN 20NF Pattern 250 A
18kV 25A HV ANSI Transformer Bushing
High Voltage Transformer Bushings
- Creep Distance 480 mm
- Weight 3.5 kg
DIN 10NF250A Transformer Bushing For Oil-Immersed Transformers
High Voltage Transformer Bushings
- DIN 10NF Pattern 250 A
AS 15/50 Transformer Bushing Insulator 15kV
High Voltage Transformer Bushings
- Voltage 15 kV
- Height 485 mm
- Diameter 101 mm
AS 24/315 Transformer Bushing Insulator 24kV
High Voltage Transformer Bushings
- Voltage 24 kV
- Height 505 mm
- Diameter 108 mm
GB BLQ-10/315 Transformer Bushing Insulator 10kV
High Voltage Transformer Bushings
- Voltage 10 kV
- Height 240 mm
- Diameter 115 mm
EN 36/250/P3 Transformer Bushing Insulator 36kV
- Voltage 36 kV
- Height 600 mm
- Diameter 155 mm
Low Voltage Transformer Bushings
Bushings for the 1kV and 3kV winding side of distribution transformers, from 250A up to 4000A.
Low Voltage Transformer Bushings
DIN 42530 1NF250A Low Voltage Transformer Bushing
Low Voltage Transformer Bushings
- Creepage Distance 50 mm
- Net Weight 0.26 kg
CB250 Outdoor Transformer Porcelain Bushing
Low Voltage Transformer Bushings
DIN 42539 3kV 250A Transformer Bushing DT3KV-250A
Low Voltage Transformer Bushings
- Creepage Distance 120 mm
DIN 42530 1kV 1250A Transformer Bushing
Low Voltage Transformer Bushings
- Current 1250 A
- Creepage Distance 50 mm
- Weight 0.26 kg
DIN 42539 3kV 630A Outdoor Transformer Bushing DT 3/630
Low Voltage Transformer Bushings
- Tank Hole Size 45 mm
- BIL 40 kV
- Creepage Distance 120 mm
DIN 42530 1kV 2000A Transformer Bushing
Low Voltage Transformer Bushings
- Creepage Distance At This Rating 75 mm
- Weight 1.29 kg
- Creepage Distance 50 mm
DIN 42539 3kV 1000A Transformer Bushing
Low Voltage Transformer Bushings
- Creepage Distance 125 mm
EN 50386 1kV 2000A Outdoor Transformer Bushing
Low Voltage Transformer Bushings
- Creepage Distance 75 mm
- Weight 1.29 kg
DIN 42530 1kV 630A Ceramic Bushing DT 1/630
Low Voltage Transformer Bushings
- Tank Hole Size 45 mm
- Creepage Distance 75 mm
- Weight 0.26 kg
DIN 42530 1kV 3150A Transformer Bushing DT 1/3150
Low Voltage Transformer Bushings
- Tank Hole Size 90 mm
- Creepage Distance 75 mm
1.2kV 800A ANSI Low Voltage Bushing 30kV BIL
Low Voltage Transformer Bushings
- Rated Voltage 1.2 kV
- BIL 30 kV
GB B-1/315 Transformer Bushing Insulator 1kV
- Voltage 1 kV
- Height 105 mm
- Diameter 65 mm
Screw Thread Transformer Bushings
Bushings whose threaded stem takes the terminal connection directly, the arrangement used on ANSI terminal boards and smaller pole transformers.
High Voltage Transformer Bushings
10kV 250A Screw Thread Transformer Bushing For 10kVA To 333kVA
Screw Thread Transformer Bushings
- Minimum Creepage Distance 270 mm
- Net Weight 2.66 kg
- Height 332 mm
ANSI 15kV Transformer Porcelain Bushing
Screw Thread Transformer Bushings
- Rated Transformer Bushing 15 kV
Threaded ANSI 18kV Transformer Bushing ANSI-18/50
High Voltage Transformer Bushings
- Overall Height H 541 mm
- Creep Distance 480 mm
- Weight 3.5 kg
18kV 25A HV ANSI Transformer Bushing
Screw Thread Transformer Bushings
- Creep Distance 480 mm
- Weight 3.5 kg
1.2kV 400A Screw Thread Transformer Bushing
Screw Thread Transformer Bushings
Threaded 1kV LV ANSI Transformer Bushing 30kV BIL
Screw Thread Transformer Bushings
- Rated Voltage 1 kV
- BIL 30 kV
1.2kV 160A Transformer Bushing Insulator
High Voltage Transformer Bushings
AS 15/50 Transformer Bushing Insulator 15kV
High Voltage Transformer Bushings
- Voltage 15 kV
- Height 485 mm
- Diameter 101 mm
AS 24/315 Transformer Bushing Insulator 24kV
- Voltage 24 kV
- Height 505 mm
- Diameter 108 mm
Fuse Cutout Bushings
Porcelain bodies and complete drop-out fuse cutouts for pole-mounted transformer protection from 10kV through 33kV.
Fuse Cutout Bushings
Outdoor Pole Mounted Drop-Out Fuse Cutout RW11-10
Fuse Cutout Bushings
- Impulse Voltage BIL On Both Ratings 110 kV
- Power Frequency Withstand Voltage 42 kV
15kV To 33kV Fuse Cut Out Bushing Insulator
Wall Bushings And Other Insulators
Through-wall bushings, indoor bushing insulators and GOST pattern parts that fall outside the main transformer bushing families.
Wall Bushings And Other Insulators
Russia 10kV Wall Bushing Ceramic Insulator IOR-10-3.75 II UKhL2
Wall Bushings And Other Insulators
- Voltage 10 kV
- Current 630 A
- Lightning Impulse Test Voltage 80 kV
IP-10-100 Indoor Bushing Insulator 10kV Russia Standard
Wall Bushings And Other Insulators
- Minimum Creepage Distance 210 mm
- Bearing Capacity 12.5 kN
- Weight 5.3 kg
IO-10/4 UKhL3 Post Bushing Insulator Catalogue Item
Wall Bushings And Other Insulators
- Class GOST Ceramic Construction 10 kV
BUCHA 24kV 160A HV Porcelain Bushing C-450
Wall Bushings And Other Insulators
- Creepage Distance, Catalogued As C-450 450 mm
- Diameter 105 mm
- Height 550 mm
BUCHA 24kV 160A 450mm Ceramic Bushing Isolators
- Creepage Distance 450 mm
- Diameter 105 mm
- Height 550 mm
Pin Type Insulators
Pin and pin post insulators carrying overhead line conductors on spindles, in ANSI, ShF, St, N, ZS, ALP and AS patterns.
Pin Type Insulators
ShF-10MO Pin Type Ceramic Insulator
Pin Type Insulators
ANSI 57-14 Line Post Porcelain Insulator 1015mm Creepage
Pin Type Insulators
- Creepage Distance 1015 mm
- Dry Arcing Distance 368 mm
- Cantilever Strength 12.5 kN
ZS-770 Pin Post Porcelain Insulator 770mm Creepage
Pin Type Insulators
- Creepage Distance 770 mm
- Rated Electromechanical Failing Load 16 kN
- Lightning Impulse Withstand Voltage 190 kV
ShF-20G1 SDI37 Porcelain Pin Insulator With Stringing Sleeve
Pin Type Insulators
- Nominal Voltage 20 kV
- Puncture Voltage In Insulating Medium 180 kV
- Impulse Withstand Voltage 125 kV
ShF-20G1 Ceramic Pin Insulator 400mm Creepage
Pin Type Insulators
- Nominal Voltage 20 kV
- Puncture Voltage In Insulating Medium 180 kV
- Impulse Withstand Voltage 135 kV
P-33-Y Pin Type Porcelain Insulator 900mm Creepage
Pin Type Insulators
- Recommended Pin Height 305 mm
- Cantilever Strength 10 kN
- Type Application Voltage 36 kV
N95-4 Pin Type Ceramic Insulator 13.6kN
Pin Type Insulators
- Top Diameter D1 80 mm
- Minimum Inner Diameter D 100 mm
- Minimum Spindle Diameter D1 25.4 mm
N95-2 Low Voltage Porcelain Pin Insulator
Pin Type Insulators
- Outer Diameter D 95 mm
- Height H 100 mm
- Top Diameter D1 50 mm
N80 Low Voltage Pin Ceramic Insulator
Pin Type Insulators
- Outer Diameter D 80 mm
- Height H 87 mm
- Top Diameter D1 42 mm
ShF-20G1S High Voltage Porcelain Pin Insulator
Pin Type Insulators
- Distribution Class 20 kV
ShF-10G Ceramic Pin Insulator 10kV 256mm Creepage
Pin Type Insulators
- Class Shf-10g Designation 10 kV
- Creepage Not Less Than 256 mm
- Puncture Voltage In Insulating Medium 160 kV
ShF-20G Pin Type Porcelain Insulator With Coupling Options
Pin Type Insulators
- Shf-20gs Type At Nominal 20 kV
- Puncture Voltage In Insulating Medium 180 kV
- Impulse Withstand Voltage 135 kV
ANSI 55-4 Pin Type Porcelain Insulator 13.2kV
Pin Type Insulators
- Creepage Distance 229 mm
- Dry Arcing Distance 127 mm
- Minimum Pin Height 127 mm
St-20J Porcelain Pin Insulator 20kV
Pin Type Insulators
- St-20j Designation At Nominal 20 kV
- Puncture Voltage In Insulating Medium 180 kV
- Impulse Withstand Voltage 125 kV
ShF-10G Ceramic Pin Insulator Standard Listing
Pin Type Insulators
- Distribution Class 10 kV
AS Standard SLP11180 Pin Type Porcelain Insulator
Pin Type Insulators
- Creepage Distance 180 mm
- Shed Diameter 150 mm
- Height 110 mm
ANSI 55-5 Brown Porcelain Pin Insulator
Pin Type Insulators
- Creepage Distance 305 mm
- Dry Arcing Distance 159 mm
- Minimum Pin Height 152 mm
ZS-600 Pin Post Insulator 24kV 600mm Creepage
Pin Type Insulators
- Voltage 24 kV
- Creepage Distance 600 mm
- Rated Electromechanical Failing Load 13 kN
PW-33-Y Pin Type Support Insulator 36kV 900mm Creepage
Pin Type Insulators
- Recommended Pin Height 305 mm
- Cantilever Strength 10 kN
- Type Application Voltage 36 kV
PW-33-Y Pin Type Support Insulator 33kV 630mm Creepage
Pin Type Insulators
- Recommended Pin Height 216 mm
- Cantilever Strength 11 kN
- Type Application Voltage 33 kV
ANSI Class 55-5 Pin Porcelain Insulator 15kV
Pin Type Insulators
- Creepage Distance 305 mm
- Dry Arcing Distance 159 mm
- Minimum Pin Height 152 mm
QS11404 QS11405 IEC Pin Post Insulator 22kV 12.5kN
Pin Type Insulators
- Cantilever Strength On Both 12.5 kN
- Dry Power Frequency Withstand Voltage 90 kV
- Wet Power Frequency Withstand Voltage 65 kV
ALP22-450 Pin Type Porcelain Insulator 22kV
- Creepage Distance 450 mm
- Lightning Impulse Withstand Voltage 150 kV
- Wet Power Frequency Withstand Voltage 50 kV
Post Insulators
Solid core post insulators supporting live parts in switchgear and on line supports, in GOST and threaded patterns.
Post Insulators
C4-80 II 10kV Porcelain Post Insulator GOST
Post Insulators
- Minimum Mechanical Breaking Force 4 kN
- Creepage Distance 300 mm
- Torsion Strength 100 N.m
IO-10/4 UKhL3 and IOR-10/3.75 II UKhL2 Post Insulator
Post Insulators
- Body Diameter 54 mm
- Overall Height 272 mm
- Minimum Puncture Voltage 75 kV
IO-10/4 UKhL3 Ceramic Post Insulator For Line Supports
Post Insulators
- Diameter Body 54 mm
- Height 272 mm
- Minimum Puncture Voltage 75 kV
IPU-10/630-7.5 I UKhL1 Wall Bushing With Oval Flange
Post Insulators
- Rated Current 630 A
- Minimum Mechanical Bending Failure Load 7.5 kN
- Rated Voltage 10 kV
J8-125 Post Ceramic Insulator 8kN Bending Strength
- BIL 125 kV
- Bending Strength 8 kN
- Maximum Shed And Outer Diameter 110 mm
Glass Suspension Insulators
Toughened glass disc insulators for transmission line suspension and tension strings, from 40kN to 160kN.
Glass Suspension Insulators
Aerodynamic Toughened Glass Suspension Insulator XYAY Series
Glass Suspension Insulators
- Rated Mechanical Failing Load 120 kN
- Nominal Creepage Distance 365 mm
- Power Frequency Puncture Voltage 130 kV
U40B Toughened Glass Disc Insulator 40kN
Glass Suspension Insulators
- Creepage Distance 185 mm
- Socket Coupling 11 mm
- Wet Power Frequency Withstand Voltage 25 kV
U70B Toughened Glass Disc Insulator For 33kV Lines
- Diameter 255 mm
- Creepage Distance 320 mm
- Socket Coupling 16 mm
Cannot Find The Pattern You Need
More than 300 product types are tooled. If the pattern is not listed here, send the drawing or a sample and we will confirm what we can run.
Product Photographs
All Categories
Glass Suspension Insulators
Toughened glass disc insulators for transmission line suspension and tension strings, from 40kN to 160kN. 3 products in production with published figures, made to IE
View Details β
High Voltage Transformer Bushings
Bushings for the high voltage side of distribution and power transformers, from the 10kV class up to 36kV. 20 products in production with published figures, made to
View Details βLow Voltage Transformer Bushings
Bushings for the 1kV and 3kV winding side of distribution transformers, from 250A up to 4000A. 12 products in production with published figures, made to IEC, DIN, EN
View Details β
Wall Bushings And Other Insulators
Through-wall bushings, indoor bushing insulators and GOST pattern parts that fall outside the main transformer bushing families. 5 products in production with publis
View Details β
Pin Type Insulators
Pin and pin post insulators carrying overhead line conductors on spindles, in ANSI, ShF, St, N, ZS, ALP and AS patterns. 23 products in production with published fig
View Details β
Post Insulators
Solid core post insulators supporting live parts in switchgear and on line supports, in GOST and threaded patterns. 5 products in production with published figures,
View Details β
Screw Thread Transformer Bushings
Bushings whose threaded stem takes the terminal connection directly, the arrangement used on ANSI terminal boards and smaller pole transformers. 9 products in produc
View Details β
Transformer Bushing Insulators
Porcelain bushings that carry transformer winding leads through the tank wall, insulate them to ground and hold them in place. 42 products in production with publish
View Details βProducts
10kV 250A Screw Thread Transformer Bushing For 10kVA To 333kVA
Screw thread transformer bushing rated 10/12 kV at 250 A for 10 kVA to 333 kVA distribution transformers. 332 mm high, 270 mm minimum creepage, 2.66 kg.
View Details β15kV To 33kV Fuse Cut Out Bushing Insulator
Porcelain fuse cutout bushing range from 15 kV to 33 kV. Creepage 220 mm to 660 mm, diameters 287 mm to 467 mm, cantilever 6.8 kN to 20 kN, IEC safety standards.
View Details β24kV Porcelain Transformer Bushing 150kV BIL
24 kV outdoor porcelain transformer bushing, 150 kV BIL, 60 kV wet withstand, 453 mm high, 137 mm diameter, 8 kg. Made to drawing or sample, ISO 9001 factory.
View Details βDIN 20NF630A Transformer Bushing 440mm Creepage
DIN 20NF630A porcelain transformer bushing, 20/24 kV at 630 A, 440 mm creepage, 125 kV BIL, 385 mm high, 6.1 kg. Copper or aluminium conductor, made to drawing.
View Details βDIN 42530 1NF250A Low Voltage Transformer Bushing
DIN 42530 1NF250A low voltage transformer bushing ceramic insulator, 250 A, 50 mm creepage, 0.26 kg. Supports and insulates the LV winding lead in oil transformers.
View Details β
ANSI 57-14 Line Post Porcelain Insulator 1015mm Creepage
ANSI Class 57-14 line post porcelain insulator, 1015 mm creepage, 368 mm dry arcing distance, 12.5 kN cantilever, 255 kV critical impulse flashover, 15.9 kg.
View Details β
IP-10-100 Indoor Bushing Insulator 10kV Russia Standard
IP-10-100 Russia standard indoor bushing insulator, 10 kV up to 60 Hz, 200 mm high, 210 mm minimum creepage, 12.5 kN bearing capacity, 5.3 kg, ISO 9001.
View Details βOutdoor Pole Mounted Drop-Out Fuse Cutout RW11-10
Porcelain drop-out fuse cutout for pole-mounted transformers. RW11-10/100 at 100 A and 6.3 kA, RW11-10/200 at 200 A and 12.5 kA, 110 kV BIL, 42 kV withstand, IEC.
View Details βRussia 10kV Wall Bushing Ceramic Insulator IOR-10-3.75 II UKhL2
GOST 10 kV wall bushing ceramic insulator, 630 A rated, 80 kV lightning impulse test, 7.5 kN bending failure force, 300 mm leakage path, atmosphere types I and II.
View Details β
DIN 42531 20NF250A Transformer Bushing Isolators
DIN 42531 20NF250A transformer bushing for the 20 kV class at 250 A. Alumina and mica porcelain shell, silicon steel core, electrolytic copper or aluminium conductor
View Details β
U70B Toughened Glass Disc Insulator For 33kV Lines
U70B/140 toughened glass disc insulator for 33 kV lines. 70 kN failing load, 255 mm diameter, 320 mm creepage, 16 mm coupling, 130 kV puncture voltage, 3.6 kg.
View Details βAerodynamic Toughened Glass Suspension Insulator XYAY Series
Aerodynamic profile toughened glass disc insulator to IEC 60383. 120 kN failing load, 365 mm creepage, 130 kV puncture voltage, 6 kg. For dusty and coastal lines.
View Details β
ANSI 55-4 Pin Type Porcelain Insulator 13.2kV
ANSI Class 55-4 pin type porcelain insulator, 13.2 kV application voltage, 229 mm creepage, 127 mm dry arcing distance, 13.6 kN cantilever strength, 3.7 kg.
View Details β
DIN 42531 30NF250A Transformer Bushing
DIN 42531 30NF250A transformer bushing with alumina and mica porcelain shell, silicon steel core and electrolytic copper or aluminium alloy conductor.
View Details β
EN 50180 24kV 250A Porcelain Transformer Bushing
EN 50180 transformer bushing at 24 kV and 250 A, manufactured and tested to IEC 60137. Range covers 1 kV to 52 kV and up to 12500 A with a wide choice of creepage.
View Details β
U40B Toughened Glass Disc Insulator 40kN
U40B/110 toughened glass disc insulator, 40 kN failing load, 178 mm diameter, 185 mm creepage, 11 mm socket coupling, 90 kV power frequency puncture voltage.
View Details β
18kV 25A HV ANSI Transformer Bushing
18 kV 25 A ANSI transformer bushing in the ANSI-18/50 body. 541 mm height, 480 mm creep distance, 8 single umbrella sheds, 3.5 kg, meets ANSI performance standards.
View Details β
24kV To 36kV HV Porcelain Transformer Bushing
High voltage porcelain transformer bushing covering 24 kV to 36 kV. Insulates leading wires and provides mechanical support inside the transformer. Made to drawing.
View Details β
DIN 10NF250A Transformer Bushing For Oil-Immersed Transformers
DIN 10NF250A transformer bushing for oil-immersed distribution transformers. High alumina porcelain C110, grey brown or white glaze, brass rod or flexible wire condu
View Details βDIN 24kV 630A Transformer Bushing CD525
DIN 24 kV 630 A porcelain transformer bushing with 525 mm creepage for coastal and polluted sites. 125 kV BIL, 385 mm high, 160 mm diameter, 6.8 kg net.
View Details β
DIN 42531 10NF250A Transformer Bushing
DIN 42531 10NF250A transformer bushing tested to IEC 60137. Range covers 1 kV to 52 kV and up to 5000 A with creepage distances for all environmental conditions.
View Details β
EN 36/250/P3 Transformer Bushing Insulator 36kV
EN 36/250/P3 transformer bushing insulator, 36 kV rated, 600 mm high, 155 mm diameter, 935 mm creepage, 465 mm arcing distance, 6.8 kg. For heavily polluted sites.
View Details β
GB BLQ-10/315 Transformer Bushing Insulator 10kV
GB BLQ-10/315 transformer bushing insulator to Chinese National Standard. 10 kV rated, 240 mm high, 115 mm diameter, 180 mm creepage, 165 mm arcing distance, 1.7 kg.
View Details β
1.2kV 800A ANSI Low Voltage Bushing 30kV BIL
1.2 kV 800 A ANSI low voltage bushing with 30 kV BIL in wet process porcelain. Three connector options, NBR gaskets, copper threaded rod, stainless steel fasteners.
View Details β
EN 50386 1kV 2000A Outdoor Transformer Bushing
EN 50386 outdoor transformer bushing at 1 kV and 2000 A, 75 mm creepage, 1.29 kg. Range covers 250 A to 4000 A. Metal parts, gaskets and porcelain supplied complete.
View Details β
DIN 42539 3kV 630A Outdoor Transformer Bushing DT 3/630
DIN 42539 DT 3/630 outdoor transformer bushing, 3 kV at 630 A, 45 mm tank hole, 40 kV BIL, 120 mm creepage, M20 stem connection. Metal parts and gaskets supplied.
View Details βDIN 42539 3kV 250A Transformer Bushing DT3KV-250A
DIN 42539 transformer bushing, 3 kV at 250 A, 120 mm creepage. Complete assembly with NBR gaskets, copper threaded rod, brass connector and stainless steel fasteners
View Details β
DIN 42530 1kV 3150A Transformer Bushing DT 1/3150
DIN 42530 DT 1/3150 transformer bushing, 1 kV at 3150 A, 90 mm tank hole, 75 mm creepage, M48 stem connection. Supports, insulates and fixes the LV winding lead.
View Details β
DIN 42530 1kV 1250A Transformer Bushing
DIN 42530 low voltage transformer bushing, 1 to 3 kV at 1250 A, porcelain insulator with copper fittings. Export carton and wooden pallet packing, made to specificat
View Details βDIN 42530 1kV 2000A Transformer Bushing
DIN 42530 transformer bushing, 1 to 3 kV at 2000 A, 75 mm creepage, 1.29 kg. Porcelain insulator with copper fittings, export carton and wooden pallet packing.
View Details βDIN 42530 1kV 630A Ceramic Bushing DT 1/630
DIN 42530 DT 1/630 transformer bushing, 1 kV at 630 A, 45 mm tank hole, 75 mm creepage, M20 stem connection. Range covers 250 A to 3150 A with matching tank holes.
View Details β
DIN 42539 3kV 1000A Transformer Bushing
DIN 42539 transformer bushing at 3 kV and 1000 A with 125 mm creepage, for oil-immersed distribution transformers. Metal parts, gaskets and porcelain supplied comple
View Details β
GB B-1/315 Transformer Bushing Insulator 1kV
GB B-1/315 low voltage transformer bushing insulator to Chinese National Standard. 1 kV rated, 105 mm high, 65 mm diameter, 85 mm creepage, 0.29 kg net weight.
View Details β
BUCHA 24kV 160A 450mm Ceramic Bushing Isolators
24 kV 160 A ceramic transformer bushing with 450 mm creepage, 105 mm diameter and 550 mm height. Second catalogue reference for the same C-450 bushing.
View Details β
BUCHA 24kV 160A HV Porcelain Bushing C-450
24 kV 160 A transformer ceramic bushing with 450 mm creepage, 105 mm diameter and 550 mm height. Slim profile for crowded terminal boards, made to drawing or sample.
View Details βIO-10/4 UKhL3 Post Bushing Insulator Catalogue Item
IO-10/4 UKhL3 and IOR-10/3.75 II UKhL2 post bushing insulator for 10 kV GOST assemblies. Made to drawing or sample with drawing figures confirmed before production.
View Details β
ANSI Class 55-5 Pin Porcelain Insulator 15kV
ANSI Class 55-5 pin porcelain insulator, 15 kV application voltage, 305 mm creepage, 159 mm dry arcing distance, 13.6 kN cantilever, 115 kV puncture voltage, 6.4 kg.
View Details β
ALP22-450 Pin Type Porcelain Insulator 22kV
ALP22-450 pin type porcelain insulator for 22 kV lines. 450 mm creepage, 150 kV lightning impulse withstand, 11 kN bending failing load, 3.5 kg, pin type C/200/11.
View Details β
QS11404 QS11405 IEC Pin Post Insulator 22kV 12.5kN
22 kV pin post porcelain insulator in two profiles. QS11404 at 520 mm creepage and 10 kg, QS11405 at 599 mm and 9.2 kg. 12.5 kN cantilever, 150 kV impulse withstand.
View Details β
PW-33-Y Pin Type Support Insulator 33kV 630mm Creepage
PW-33-Y compact pin type support insulator, 33 kV application voltage, 630 mm total and 267 mm protected creepage, 11 kN cantilever, 280 mm diameter, 11.5 kg.
View Details β
PW-33-Y Pin Type Support Insulator 36kV 900mm Creepage
PW-33-Y pin type support insulator, 36 kV application voltage, 900 mm total and 450 mm protected creepage, 10 kN cantilever, 200 kV puncture voltage, 12.5 kg.
View Details β
ZS-600 Pin Post Insulator 24kV 600mm Creepage
ZS-600 pin post porcelain insulator, 24 kV rated, 600 mm creepage, 13 kN electromechanical failing load, 125 kV lightning impulse, 160 kV breakdown voltage.
View Details β
ANSI 55-5 Brown Porcelain Pin Insulator
ANSI Class 55-5 brown glazed porcelain pin insulator, 15 kV application voltage, 305 mm creepage, 159 mm dry arcing distance, 13.6 kN cantilever strength, 6.4 kg.
View Details β
AS Standard SLP11180 Pin Type Porcelain Insulator
SLP11180 pin type porcelain insulator to Australian Standard. 180 mm creepage, 150 mm shed diameter, 110 mm high, 95 kV impulse withstand, 7 kN cantilever strength.
View Details β
ShF-10G Ceramic Pin Insulator Standard Listing
ShF-10G ceramic pin insulator for 10 kV distribution lines. Glazed porcelain body with conductor tie groove, pin spindle mounting, made to drawing or sample.
View Details β
St-20J Porcelain Pin Insulator 20kV
St-20J porcelain pin insulator, 20 kV nominal, 325 mm creepage, 13 kN minimum bending failing load, 125 kV impulse withstand, 180 kV puncture voltage, 1.82 kg.
View Details β
ShF-20G Pin Type Porcelain Insulator With Coupling Options
ShF-20GS pin type porcelain insulator, 20 kV nominal, 325 mm creepage, 13 kN bending load, 135 kV impulse withstand. Polyethylene capsule or SFS composite thread.
View Details β
ShF-10G Ceramic Pin Insulator 10kV 256mm Creepage
ShF-10G ceramic pin insulator for 10 kV lines. 256 mm minimum creepage, 12.5 kN bending failing load, 100 kV impulse withstand, 160 kV puncture voltage, 1.8 kg.
View Details β
ShF-20G1S High Voltage Porcelain Pin Insulator
ShF-20G1S porcelain pin insulator for 20 kV distribution lines, held as a separate designation for its coupling arrangement. Made to drawing or sample, ISO 9001.
View Details β
N80 Low Voltage Pin Ceramic Insulator
N80 low voltage pin ceramic insulator, 80 mm outer diameter, 87 mm height, 19 mm minimum bore, 30 mm groove width. For light service drops and secondary runs.
View Details β
N95-2 Low Voltage Porcelain Pin Insulator
N95-2 low voltage porcelain pin insulator, 95 mm outer diameter, 100 mm height, 22 mm minimum bore, 35 mm groove width. For LV distribution and service conductors.
View Details β
N95-4 Pin Type Ceramic Insulator 13.6kN
N95-4 high voltage pin type ceramic insulator, 130 mm diameter, 152 mm high, 13.6 kN minimum breaking load, 50 kV one minute wet withstand, 115 kV puncture voltage.
View Details βP-33-Y Pin Type Porcelain Insulator 900mm Creepage
P-33-Y pin type porcelain insulator, 36 kV application voltage, 900 mm total and 450 mm protected creepage, 10 kN cantilever, 200 kV puncture voltage, 12.5 kg.
View Details β
ShF-20G1 Ceramic Pin Insulator 400mm Creepage
ShF-20G1 pin insulator with stringing sleeve, 400 mm nominal creepage, 85 kV dry and 65 kV wet withstand, 135 kV impulse withstand, 13 kN bending failing load.
View Details β
ShF-20G1 SDI37 Porcelain Pin Insulator With Stringing Sleeve
ShF-20G1 SDI37 porcelain pin insulator with stringing sleeve. 20 kV nominal, 325 mm creepage, 13 kN bending load, 125 kV impulse withstand, 2.1 kg.
View Details β
ZS-770 Pin Post Porcelain Insulator 770mm Creepage
ZS-770 pin post porcelain insulator, 770 mm creepage, 16 kN electromechanical failing load, 190 kV lightning impulse, 85 kV wet withstand, 200 kV breakdown voltage.
View Details β
C4-80 II 10kV Porcelain Post Insulator GOST
C4-80 II GOST post insulator for 10 kV switchgear. 80 kV test voltage, 4 kN breaking force, 300 mm creepage, 100 N.m torsion, 2.75 kg, UKhL1 climatic execution.
View Details β
IO-10/4 UKhL3 Ceramic Post Insulator For Line Supports
IO-10/4 UKhL3 ceramic post insulator for 10 kV line supports. 54 mm diameter, 272 mm high, 75 kV minimum puncture voltage, strength class II, UKhL2 execution.
View Details βIO-10/4 UKhL3 and IOR-10/3.75 II UKhL2 Post Insulator
GOST ceramic post insulator for 10 kV line supports, 54 mm diameter, 272 mm high, 75 kV minimum puncture voltage, strength class II, UKhL2 climatic execution.
View Details β
IPU-10/630-7.5 I UKhL1 Wall Bushing With Oval Flange
GOST IPU-10/630-7.5 I UKhL1 through-wall bushing, 10 kV at 630 A, 7.5 kN bending load, oval flange type I, UKhL1 execution for atmosphere types I and II.
View Details βJ8-125 Post Ceramic Insulator 8kN Bending Strength
J8-125 white glazed post ceramic insulator, 125 kV BIL, 8 kN bending strength, 210 mm high, 110 mm outer diameter, M16 top and M20 bottom mounting threads.
View Details β
1.2kV 160A Transformer Bushing Insulator
1.2 kV 160 A screw thread transformer bushing insulator in wet process porcelain, light grey glaze, with NBR gaskets, copper threaded rod and stainless fasteners.
View Details β1.2kV 400A Screw Thread Transformer Bushing
1.2 kV 400 A screw thread transformer bushing in wet process porcelain with light grey glaze. NBR gaskets, copper threaded rod, brass connector, stainless fasteners.
View Details β
Threaded 1kV LV ANSI Transformer Bushing 30kV BIL
1 kV LV ANSI transformer bushing with 30 kV BIL in wet process porcelain, light grey glaze. NBR gaskets, copper threaded rod, brass connector, stainless fasteners.
View Details β
Threaded ANSI 18kV Transformer Bushing ANSI-18/50
Threaded ANSI-18/50 transformer bushing, 541 mm height, 480 mm creep distance, 8 single umbrella sheds, 3.5 kg. Meets ANSI electrical and mechanical performance.
View Details βRequest a Quote
We reply to every enquiry within one business day. Write to us directly by email or WhatsApp β both reach our sales desk immediately.
