Name: IP-10-100 Indoor Bushing Insulator 10kV Russia Standard
Brand: Pingxiang Risheng Electric Porcelain Co., Ltd.

Wall Bushings And Other Insulators production

Home
Products
Wall Bushings And Other Insulators
IP-10-100 Indoor Bushing Insulator 10kV Russia Standard

Product Overview

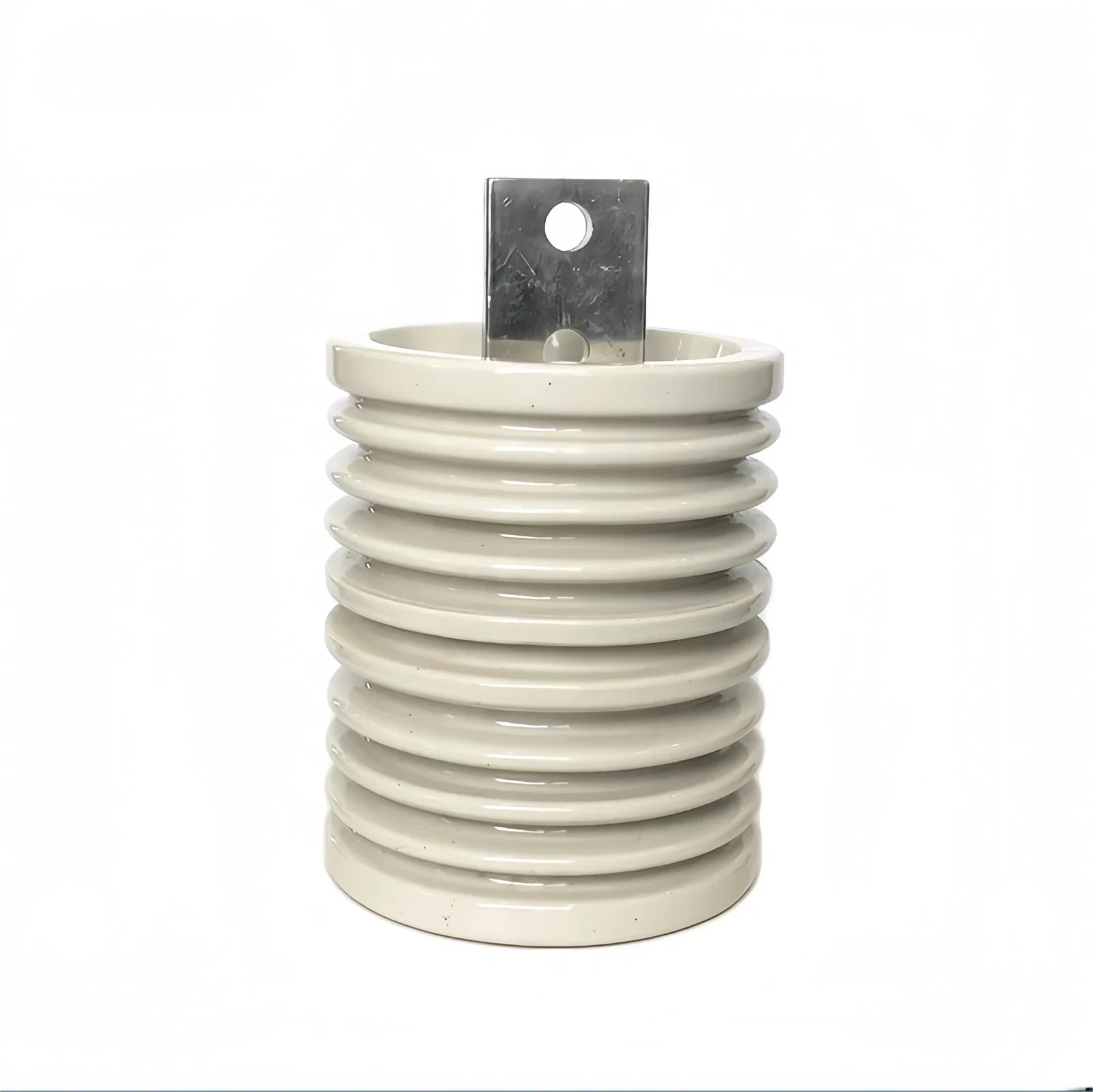

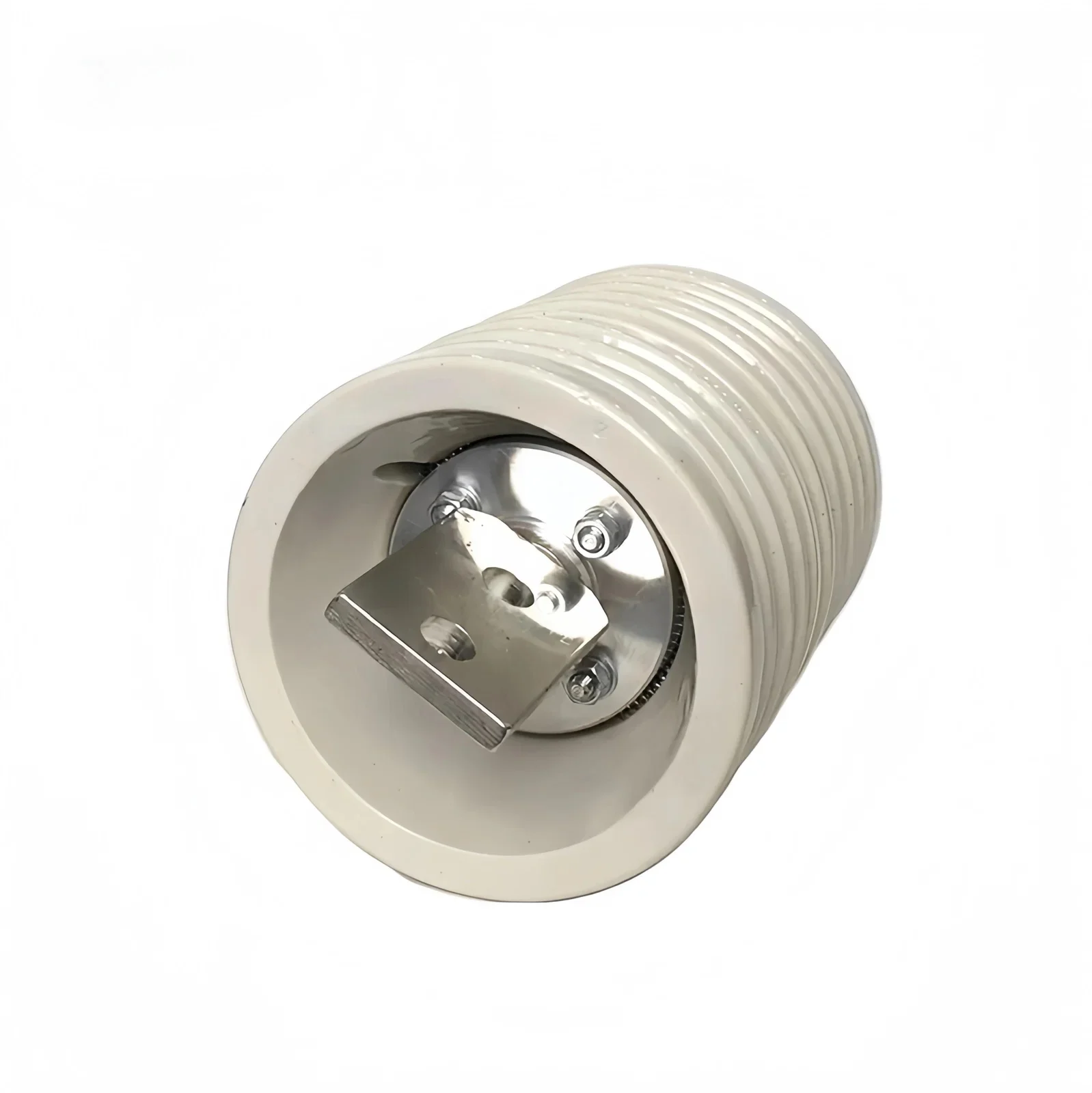

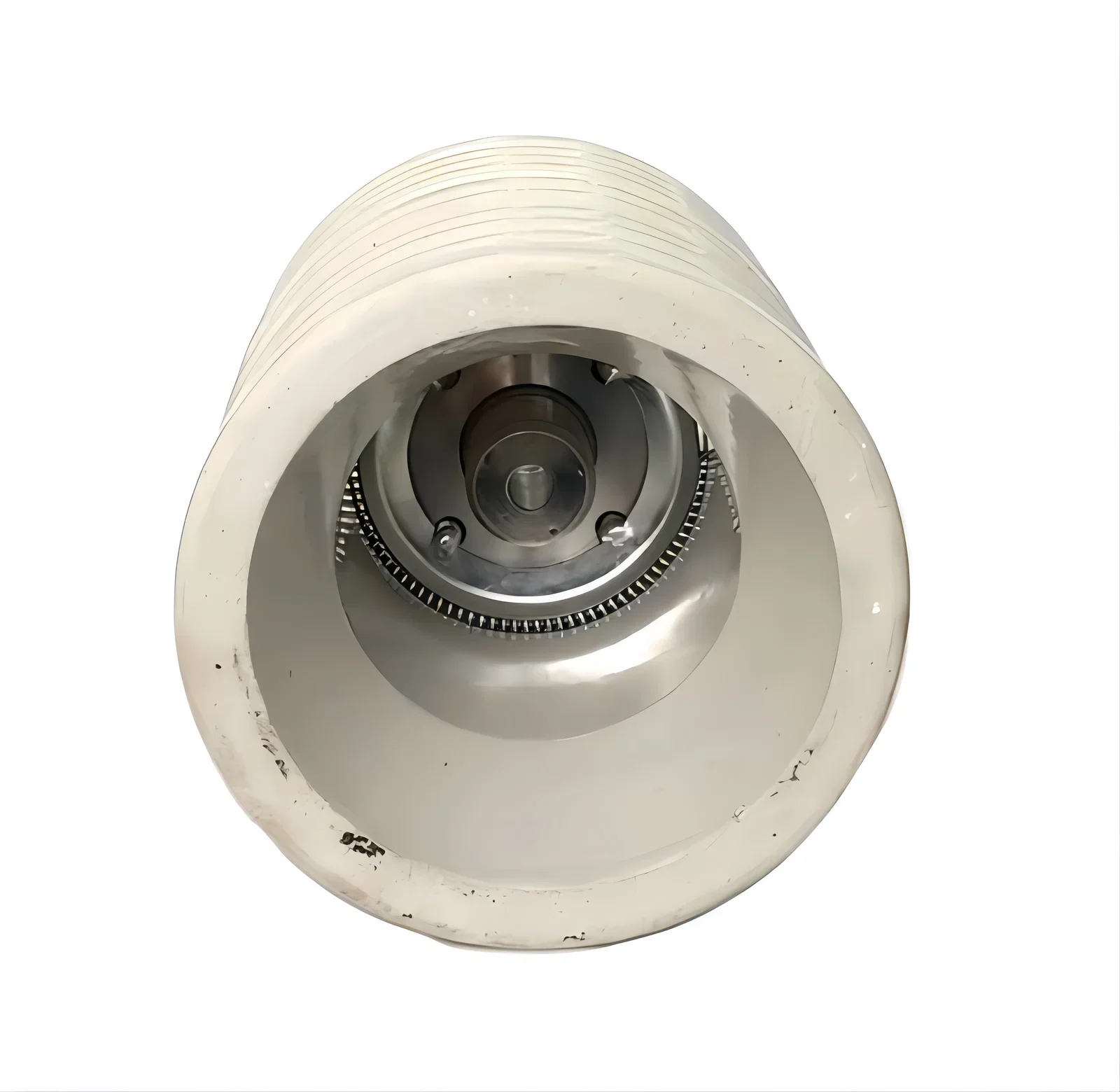

An indoor bushing insulator to the Russia standard IP-10-100 pattern, for insulating live parts in electrical devices and complete switchgear at 10 kV alternating current up to 60 Hz. It insulates and fastens wires, including on overhead line connections and in the distribution equipment of power stations and substations. The body is 200 mm high and 170 mm across with a minimum 210 mm creepage, a 12.5 kN bearing capacity and a weight of 5.3 kg.

Why Buyers Choose This Part

12.5 kN bearing capacity for trough type connections
Minimum 210 mm creepage on a compact 200 mm tall indoor body
ISO 9001 certified production with a stated 100000 units a year capacity
White glazed finish that shows contamination during indoor inspection

Where It Is Used

Insulating live parts inside complete switchgear at 10 kV
Distribution equipment at electric power stations and substations
Fastening and insulating wires on overhead transmission connections
Closed switchgear where a trough type connection is used

Who It Suits

Switchgear manufacturers building to Russia standard patterns
Substation electrical maintenance teams
Importers supplying CIS-standard indoor bushings

What Goes Wrong Without The Right Part

Indoor bushings that cannot take the mechanical load of a trough connection
Creepage too short for an enclosure that collects dust
Supply gaps on Russia standard part numbers
Uncertain production capacity on repeat annual orders

How It Is Built

Rated voltage 10 kV at frequencies up to 60 Hz
200 mm height and 170 mm diameter
Minimum 210 mm creepage distance
12.5 kN bearing capacity
Trough type connection method
5.3 kg weight
White colour, Russia standard type

Published Figures For This Product

Every value below comes from the manufacturer data for this item. Figures not listed are confirmed against the drawing before an order is placed.

Minimum Creepage Distance	210 mm
Bearing Capacity	12.5 kN
Weight	5.3 kg
Rated Voltage	10 kV

Materials

White glazed electrical ceramic
Metal connection hardware

Process

Forming
Glazing
Firing
Hardware assembly
Routine electrical and load test

Testing

Bearing capacity proof test at 12.5 kN
Creepage verification against the 210 mm minimum
Glaze and dimension inspection

Certification

ISO 9001
Russia standard type

Customisation Options

Produced to drawing or sample
Transport packing to your dimensions, standard case is 1000 x 1000 x 1000 mm
Branded to Risheng PX or to your own trademark

How It Compares

Outdoor wall bushing	This is an indoor installation part. For a penetration exposed to weather use the wall bushing range instead.
Post insulator of the same class	The IP-10-100 conducts current through its body as well as supporting it, which a post insulator does not do.
