22.5X14.00

Home / Wheels and Rims / Tubeless Steel Wheels / 22.5X14.00

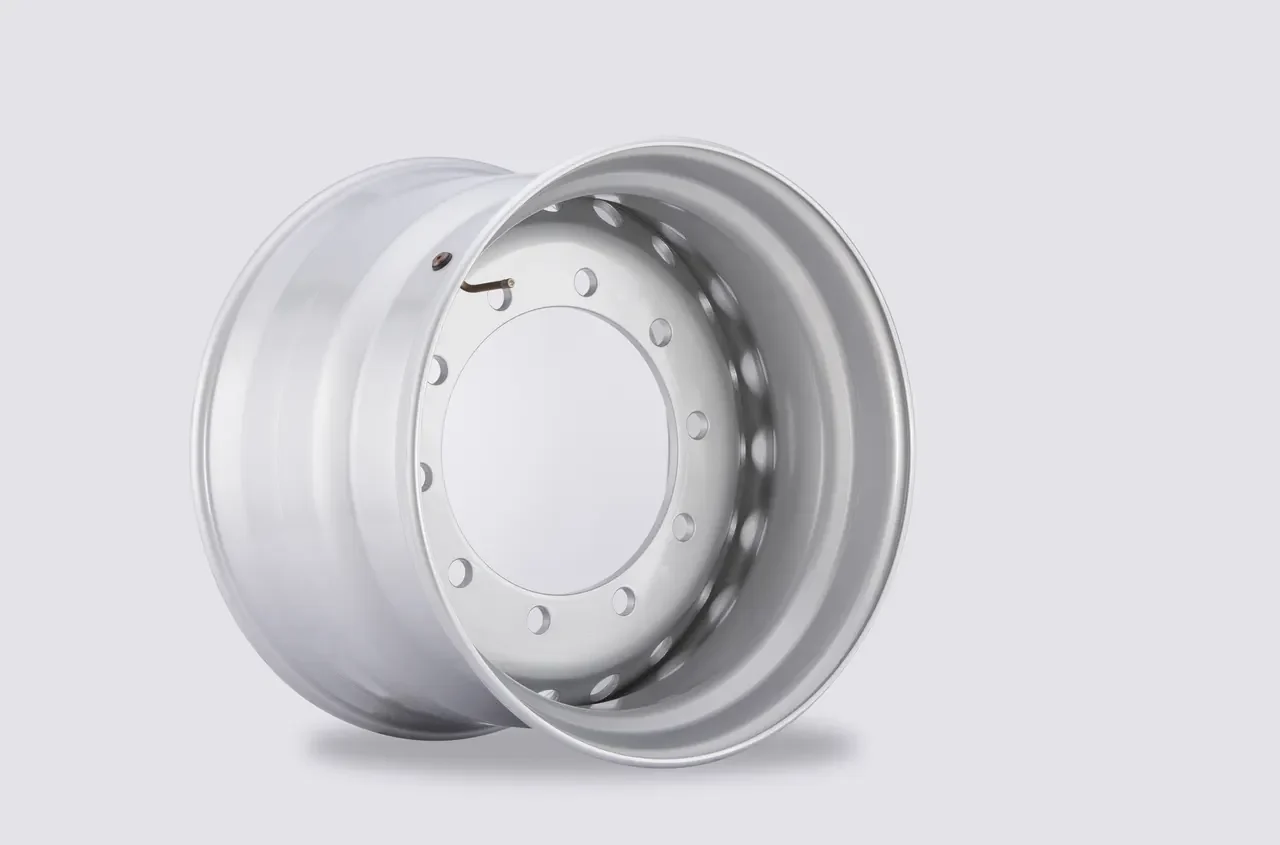

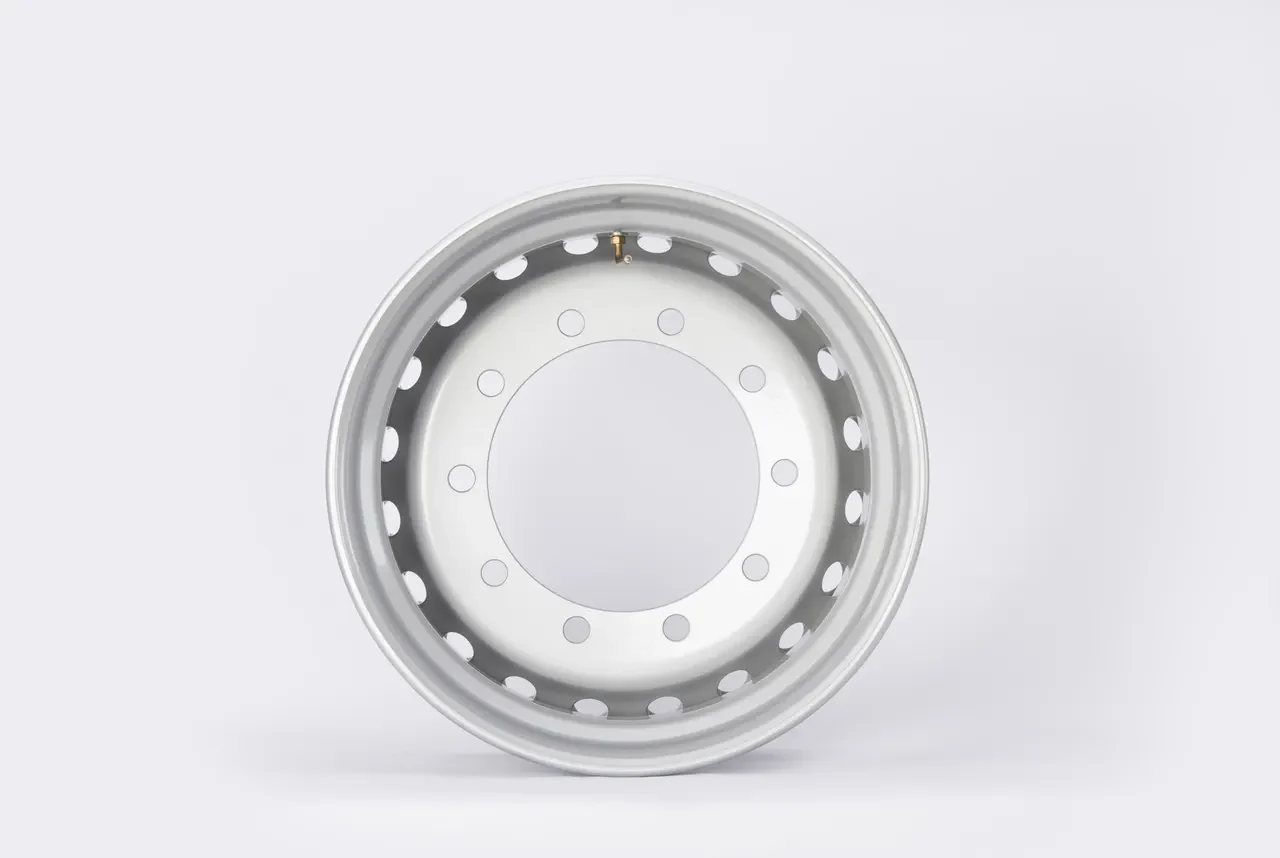

22.5X14.00 is a steel rim designed for heavy-duty truck applications, built to support high load ratings and compatible with standard 22.5 inch tyres. It features a 10-bolt pattern with a 33

Overview

22.5X14.00 is a steel rim designed for heavy-duty truck applications, built to support high load ratings and compatible with standard 22.5 inch tyres. It features a 10-bolt pattern with a 335 mm pitch circle diameter and a 0 offset, ensuring stable mounting on drive and trailer axles. The rim is suitable for use in mixed road and rough terrain environments where durability and load capacity are critical.

• ISO9001
• ISO/TS16949
• CCC
• E-mark
• DOT
• GSO/GCC
• SONCAP
• INMETRO
• NOM

What 22.5X14.00 Gives the Operator

5600kg rated load supports heavy freight and long-haul operations

10-φ26 bolt pattern with φ335 PCD ensures compatibility with common truck axle hubs

0 offset provides balanced mounting on both drive and trailer axles

TR572C valve type allows for secure and reliable air retention

20-φ36 wind holes improve heat dissipation during prolonged high-speed operation

Application Scenarios

• Heavy-duty freight transport on paved highways with frequent loading and unloading
• Long-haul trucking where consistent load capacity and rim integrity are essential
• Fleet operations requiring durable, standardized rims across mixed vehicle models

Who It Is For

• Truck importers sourcing steel rims for container shipments
• Fleet operators replacing rims on 22.5 inch wheels in mixed axle positions
• Distributors needing a standard rim profile for multiple tyre sizes and brands

What It Is Meant To Fix

Rims that fail under high load due to inadequate rated capacity

Misalignment or poor fit caused by mismatched bolt patterns or offset

Overheating during long hauls due to insufficient ventilation in the rim design

Air leakage from improper valve type or poor sealing on the rim

Published Data For 22.5X14.00

These are the figures published for this product. Anything not listed here is confirmed in writing before an order.

• Model 22.5×14.00
• Rated Load 5600kg
• Distributed Circle (PCD) φ335
• Bolt Hole 10-φ26
• Center Hole φ281
• Screw Hole Type 1×45°
• Offset 0
• Wind Hole Type 20-φ36
• Valve Type TR572C

Technical Features

• Model: 22.5×14.00 steel rim without inner tube
• Rated load: 5600kg at recommended pressure
• Bolt pattern: 10 holes, φ26 diameter, 335 mm pitch circle diameter
• Center hole: φ281 for hub alignment
• Screw hole type: 1×45° for secure fastening
• Offset: 0 mm for symmetrical mounting
• Wind hole type: 20 holes, φ36 diameter for improved heat dissipation
• Valve type: TR572C for standard valve stem compatibility

Customisation

• Rims can be packed in mixed configurations within a single container
• Surface finish options available upon request, including galvanization or paint
• Marking and labeling can be applied to suit destination market requirements

Quality Control

• Rim profile verified against dimensional standards during production
• Bolt hole alignment checked using precision gauges
• Surface finish inspected for cracks, burrs, or deformation
• Production conducted under ISO9001 and ISO/TS16949 quality systems

How It Compares

• Compared with A rim with a different bolt pattern or PCD This rim ensures direct fitment with common 10-φ26 hubs, reducing installation risk
• Compared with A rim with negative or positive offset 0 offset provides balanced load distribution, reducing stress on wheel bearings
• Compared with A rim without wind holes 20-φ36 wind holes enhance heat dissipation during high-speed or heavy-load operation

Getting the Most Out Of It

• Install only on axles that match the 10-φ26 bolt pattern and φ335 PCD
• Ensure the center hole φ281 aligns with the hub to prevent misalignment
• Use TR572C valve stems for consistent air retention and compatibility
• Check bolt tightness regularly to prevent rim loosening during operation

Related Products

6jx16

22.5×11.75

19.50×14.00

24.5×8.25

Industries That Use It

• Long Haul Freight
• Regional Distribution
• Bus and Coach

Related Guides

• Matching Tyres to Truck Wheels
• Steel Versus Aluminium Truck Wheels
• Tyre Storage and Handling Before Fitting

22.5X14.00 Questions

The rim is rated for 5600kg at the recommended pressure and mounting conditions.

It uses a 10-φ26 bolt pattern with a 335 mm pitch circle diameter.

The offset is 0 mm, meaning the rim is centered on the hub.

The rim uses a TR572C valve type, compatible with standard valve stems.

Yes, the 0 offset and 5600kg load rating make it suitable for both drive and trailer positions.

Yes, it has 20 wind holes with a φ36 diameter for improved heat dissipation.

Get Pricing For 22.5X14.00

Send the sizes and quantity per size. We will confirm availability, the approval marking for your market and a container plan.
