17.5×6.75

Home / Wheels and Rims / Tubeless Steel Wheels / 17.5×6.75

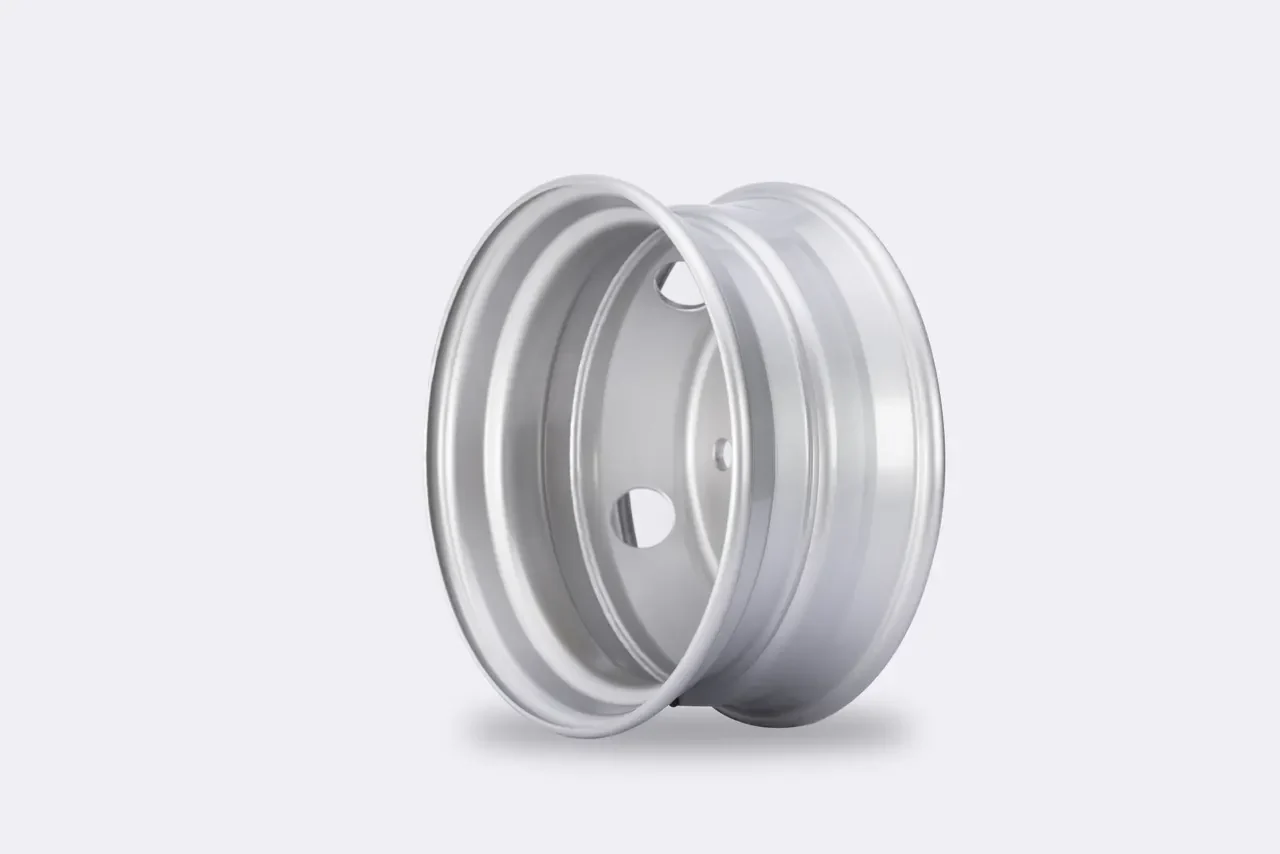

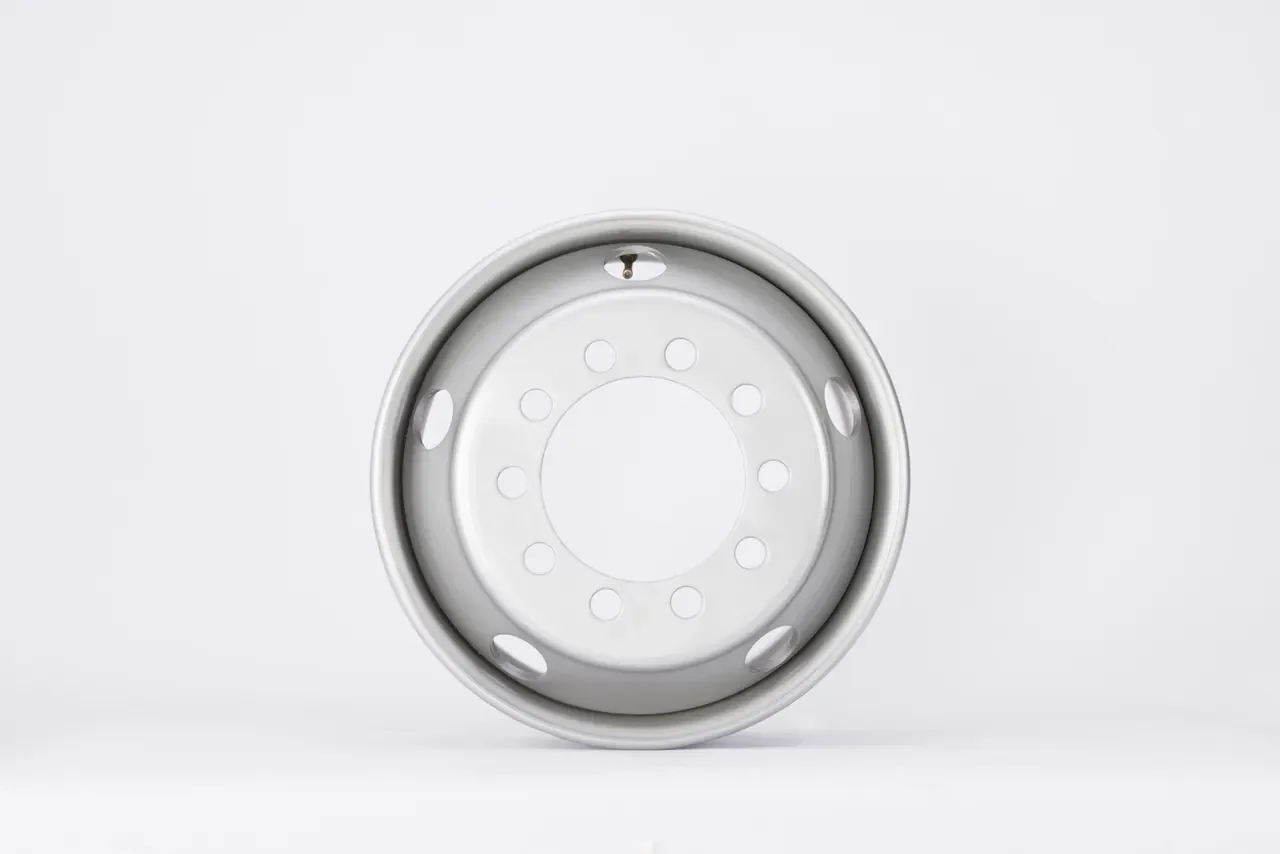

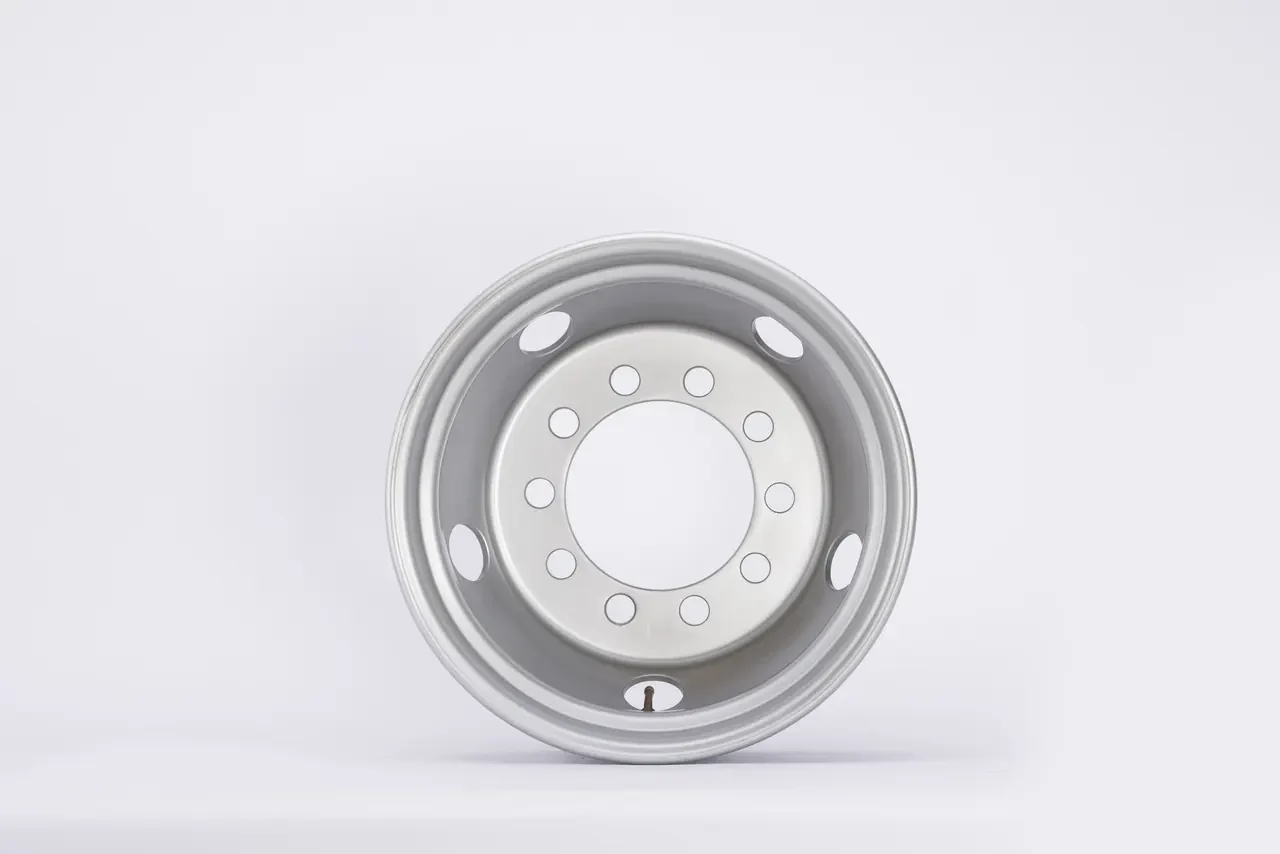

The 17.5×6.75 steel rim is designed for medium-duty trucks and buses operating on paved and mixed road surfaces. It features a V3-20-4 offset profile, a 10-φ26 bolt pattern, and a φ225 PCD f

Overview

The 17.5×6.75 steel rim is designed for medium-duty trucks and buses operating on paved and mixed road surfaces. It features a V3-20-4 offset profile, a 10-φ26 bolt pattern, and a φ225 PCD for secure mounting on standard axles. The rim supports a rated load of 2000kg and is built for durability in regional distribution and urban transport applications.

• ISO9001
• ISO/TS16949
• CCC
• E-mark
• DOT
• GSO/GCC
• SONCAP
• INMETRO
• NOM

What 17.5×6.75 Gives the Operator

V3-20-4 offset profile ensures stable fit on drive and trailer axles with minimal lateral movement

10-φ26 bolt hole pattern provides strong connection to hub and reduces loosening under vibration

φ225 PCD matches common axle standards in medium-duty truck fleets across Asia, Africa and Latin America

5-φ55/ valve type allows easy valve stem installation and sealing in high-pressure environments

Steel construction with no inner tube design reduces weight and eliminates puncture risk from inner tube failure

Application Scenarios

• Medium-duty urban delivery trucks operating on city streets with frequent stops and starts
• Regional distribution fleets running on paved and lightly graded roads with moderate axle loads
• Bus operators using 17.5 inch rims on city and intercity routes with consistent load profiles

Who It Is For

• Importers sourcing steel rims for medium-duty truck and bus fleets in emerging markets
• Distributors needing a reliable rim for replacement or fleet maintenance in 17.5 inch applications
• Fleet operators replacing rims on older models with 17.5×6.75 specifications

What It Is Meant To Fix

Rims that wobble or misalign due to poor offset or bolt pattern mismatch on axle hubs

Inner tube failures in rim systems that increase downtime and maintenance costs

Incompatible bolt patterns that prevent mounting on standard truck axles across different regions

Published Data For 17.5×6.75

These are the figures published for this product. Anything not listed here is confirmed in writing before an order.

• Model 17.5×6.75
• Rated Load 2000kg
• Distributed Circle (PCD) φ225
• Bolt Hole 10-φ26
• Center Hole φ176
• Screw Hole Type 1×45°
• Wind Hole Type 142
• Valve Type 5-φ55/Oval
• Offset V3-20-4

Technical Features

• 17.5×6.75 rim size with V3-20-4 offset for balanced load distribution and axle stability
• φ225 PCD with 10-φ26 bolt holes for secure and reliable hub connection
• Center hole of φ176 to fit standard axle shafts without additional adapters
• Screw hole type 1×45° for proper alignment during tightening and torque application
• Wind hole type 142 for consistent rim-to-tire bead seating and air retention

Customisation

• Rims can be packed in mixed configurations within a single container for multi-item orders
• Surface finish available in black, galvanized, or powder-coated options upon request
• Rim marking and branding can be added to match customer specifications or fleet identity

Quality Control

• Rim profile checked for dimensional accuracy using calibrated gauges before final inspection
• Bolt hole alignment verified with PCD gauge to ensure compatibility with standard hubs
• Surface finish inspected for cracks, burrs or welding defects before coating application
• Production carried out under ISO9001 and ISO/TS16949 systems with documented traceability

How It Compares

• Compared with An aluminium rim Steel rim is heavier but more durable under heavy loads and rough road conditions, while aluminium is lighter but more prone to denting
• Compared with A rim with inner tube This no-inner-tube design reduces weight and eliminates inner tube punctures, but requires a compatible tubeless tyre

Getting the Most Out Of It

• Ensure the rim is compatible with the axle hub's PCD and center hole size before mounting
• Use a torque wrench to tighten bolts to the manufacturer's recommended specification
• Inspect the rim surface and bead seat for damage before mounting a new tyre
• Verify that the valve stem fits the 5-φ55/ type and is sealed properly to prevent air loss

Related Products

6jx16

22.5×11.75

19.50×14.00

24.5×8.25

Industries That Use It

• Long Haul Freight
• Regional Distribution
• Bus and Coach

Related Guides

• Matching Tyres to Truck Wheels
• Steel Versus Aluminium Truck Wheels
• Tyre Storage and Handling Before Fitting

17.5×6.75 Questions

The rim has a rated load of 2000kg, suitable for medium-duty truck and bus applications.

Commonly used on medium-duty trucks, city buses, and regional delivery vehicles with 17.5 inch wheel systems.

The rim has a 10-φ26 bolt hole pattern and a φ225 PCD, standard for many medium-duty axles.

Yes, the rim is designed for tubeless operation with a sealed bead seat and compatible valve type.

Yes, the 17.5×6.75 rim is suitable for both drive and trailer axles when used with appropriate load-rated tyres.

Resunyou rims comply with ISO9001 and ISO/TS16949 standards. Additional certifications depend on the destination market and are confirmed per order.

Get Pricing For 17.5×6.75

Send the sizes and quantity per size. We will confirm availability, the approval marking for your market and a container plan.
