Name: 6.00G-16
Brand: Resunyou Co., Limited

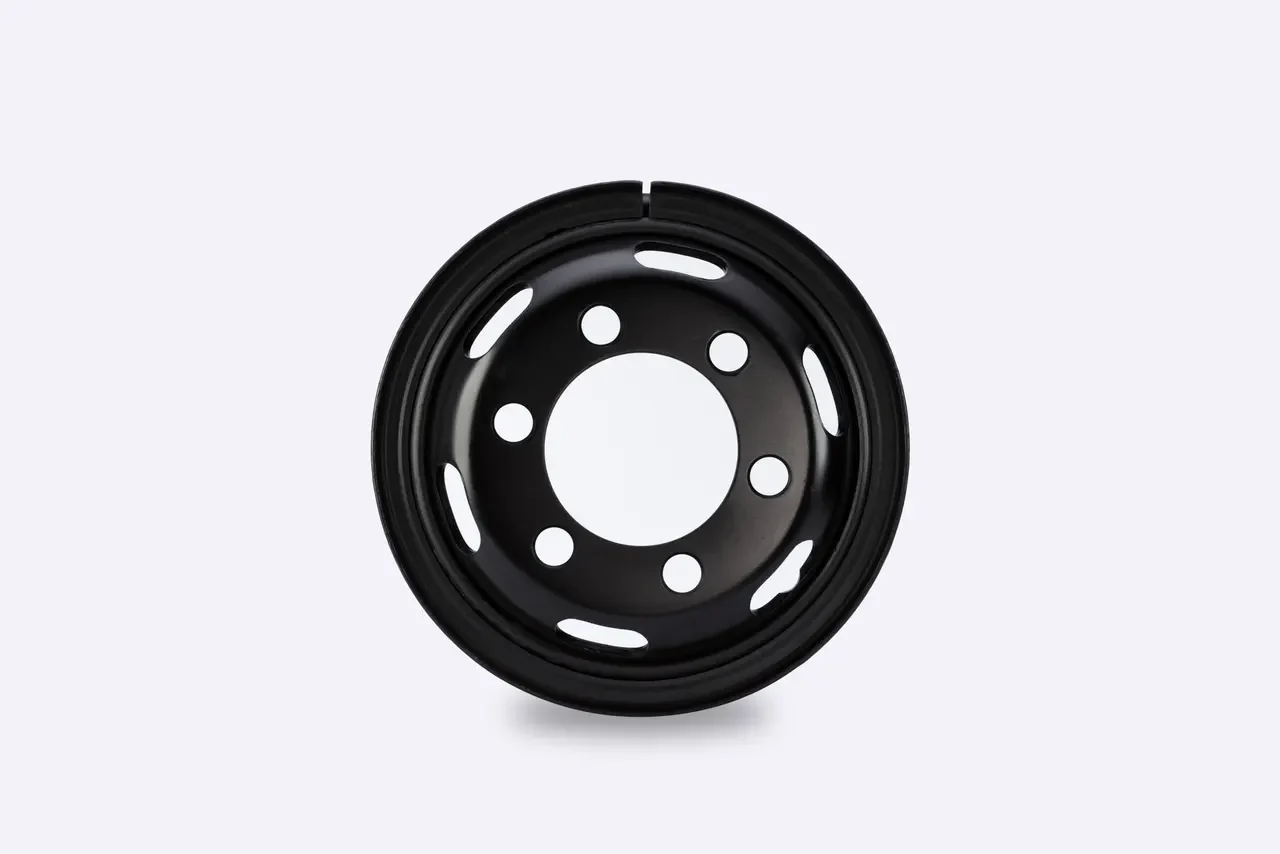

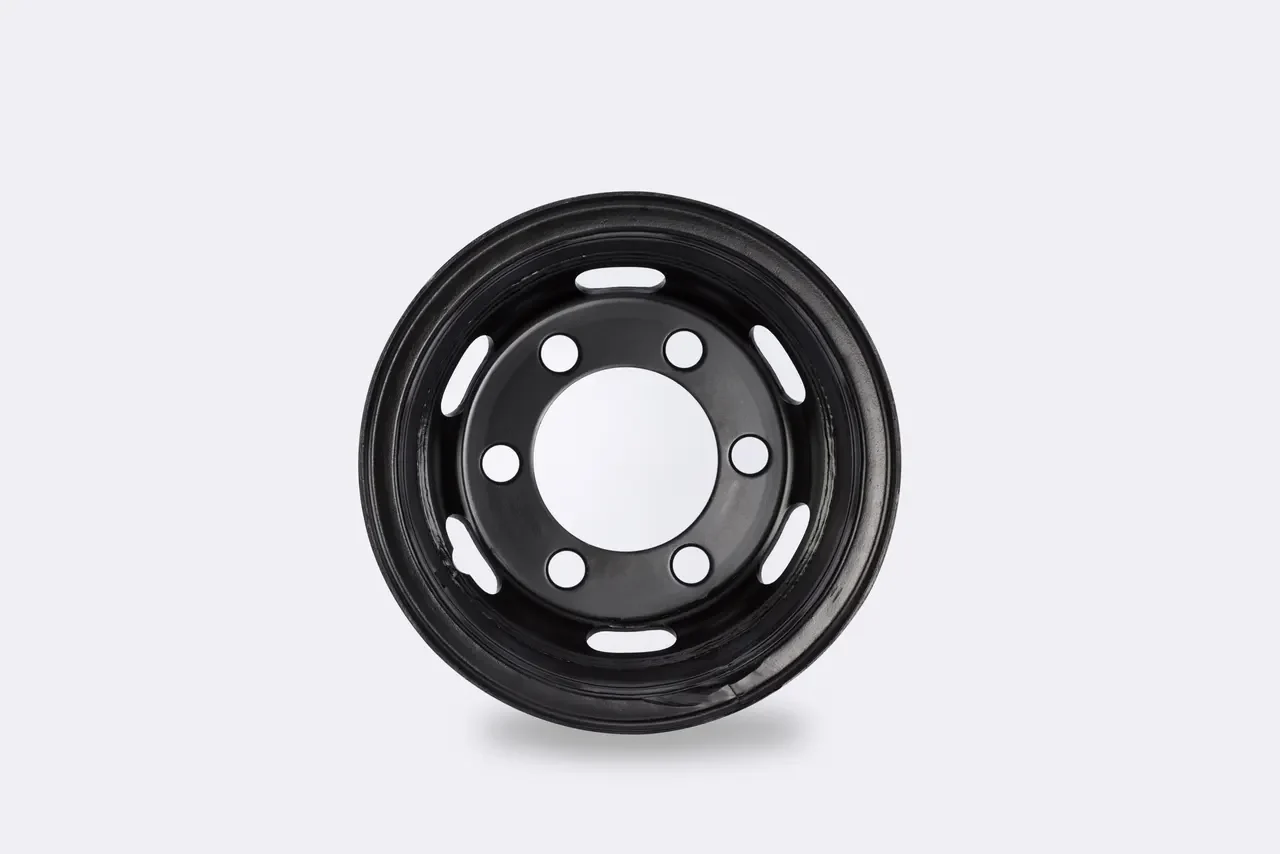

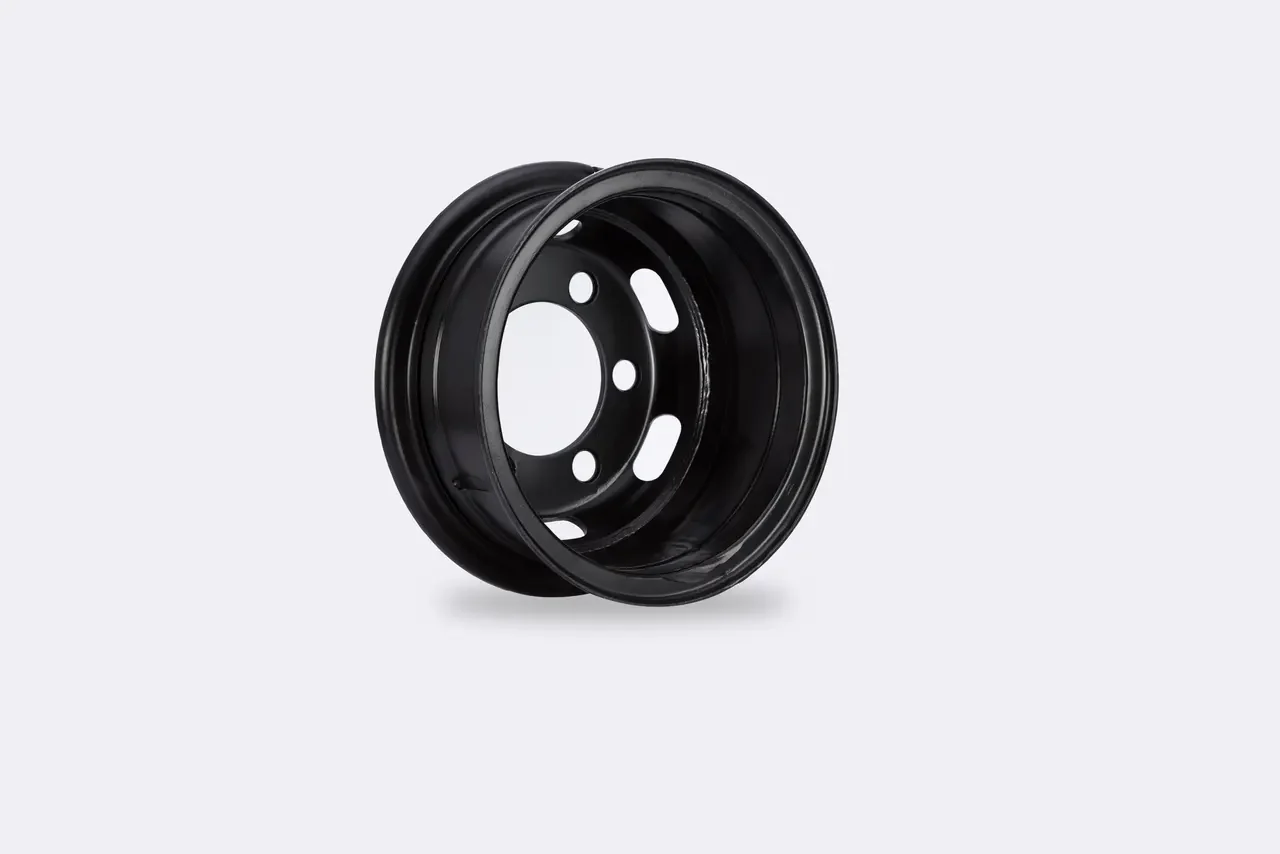

6.00G-16 truck wheel supplied by Resunyou

Home / Wheels and Rims / Section Steel Rims / 6.00G-16

6.00G-16 is a section steel rim designed for medium-duty truck and bus applications, featuring a 6.00G-16 profile with a 120 mm offset and a 6-bolt pattern. It supports a rated load of 1450

Overview

6.00G-16 is a section steel rim designed for medium-duty truck and bus applications, featuring a 6.00G-16 profile with a 120 mm offset and a 6-bolt pattern. It supports a rated load of 1450 kg and is compatible with a range of standard truck wheel assemblies. The rim is built for durability in mixed road conditions and consistent performance under regular load cycles.

ISO9001
ISO/TS16949
CCC
E-mark
DOT
GSO/GCC
SONCAP
INMETRO
NOM

What 6.00G-16 Gives the Operator

120 mm offset provides balanced clearance and stability on axle mounting

6-bolt pattern with φ222.25 PCD ensures compatibility with common truck wheel hubs

1×45° screw hole type allows secure fastening with standard wheel nuts

φ164 center hole fits a wide range of hub types used in commercial vehicles

Wind hole type 6-30×80 supports even load distribution and heat dissipation

Application Scenarios

Medium-duty trucks operating on paved and lightly graded roads with regular loading
Urban and regional delivery fleets using standard 16-inch wheel assemblies
Buses and coaches running on mixed road surfaces with consistent axle loading

Who It Is For

Importers sourcing standard section steel rims for truck and bus fleets
Distributors stocking rims for repair and replacement in commercial vehicle workshops
Fleet operators replacing worn rims on medium-duty trucks with a proven fit

What It Is Meant To Fix

Mismatched rim offset causing wheel alignment issues and uneven wear

Incompatible bolt patterns leading to installation delays and safety risks

Poor load distribution from incorrect center hole size or wind hole design

Rims that fail under repeated loading due to weak structural profile

Published Data For 6.00G-16

These are the figures published for this product. Anything not listed here is confirmed in writing before an order.

Model 6.00G-16
Rated Load 1450kg
Distributed Circle (PCD) φ222.25
Bolt Hole 6-φ24
Center Hole φ164
Screw Hole Type 1×45°
Offset 120
Wind Hole Type 6-30×80

Technical Features

6.00G-16 rim profile with 120 mm offset for optimal wheel positioning
6-bolt pattern with φ222.25 PCD and φ24 bolt hole diameter
Center hole of φ164 mm for hub compatibility
Screw hole type 1×45° for secure fastening and torque retention
Wind hole type 6-30×80 for balanced load transfer and structural integrity

Customisation

Rims can be supplied with custom markings or logos on request
Packing options available to suit container loading and export requirements

Quality Control

Dimensional checks performed on every rim during production
Surface finish inspected for cracks, burrs, and welding defects
Manufactured under ISO9001 and ISO/TS16949 quality systems

How It Compares

Compared with An aluminium rim 6.00G-16 is more cost-effective and robust under heavy load, though heavier than aluminium alternatives

Getting the Most Out Of It

Ensure the rim is matched to the correct wheel hub and bolt pattern before installation
Verify the center hole size and offset to prevent misalignment and vibration
Use torque specifications recommended by the vehicle manufacturer when tightening wheel nuts
Inspect the rim for damage or deformation after impact or long-term use
