Name: 22.5x11.75 20 Hand Holes
Brand: Resunyou Co., Limited

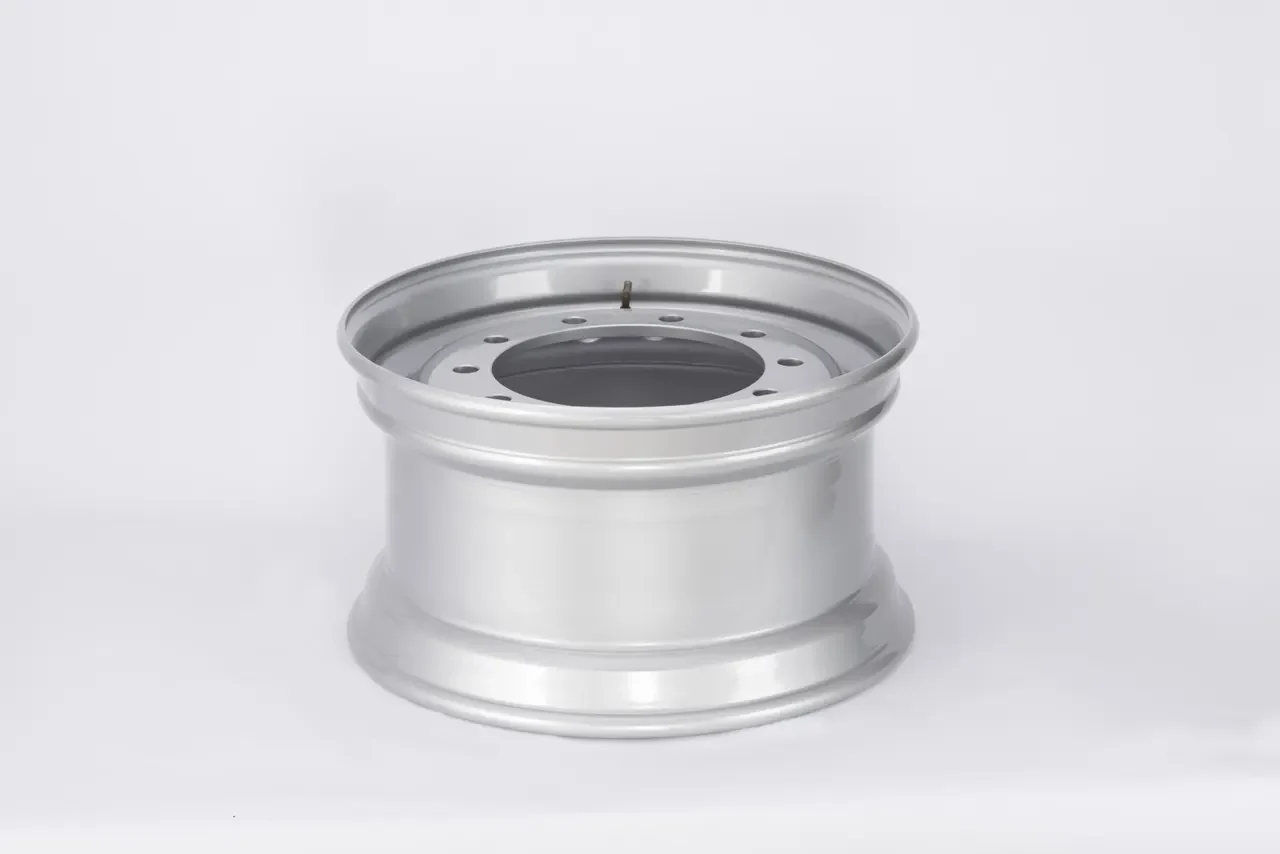

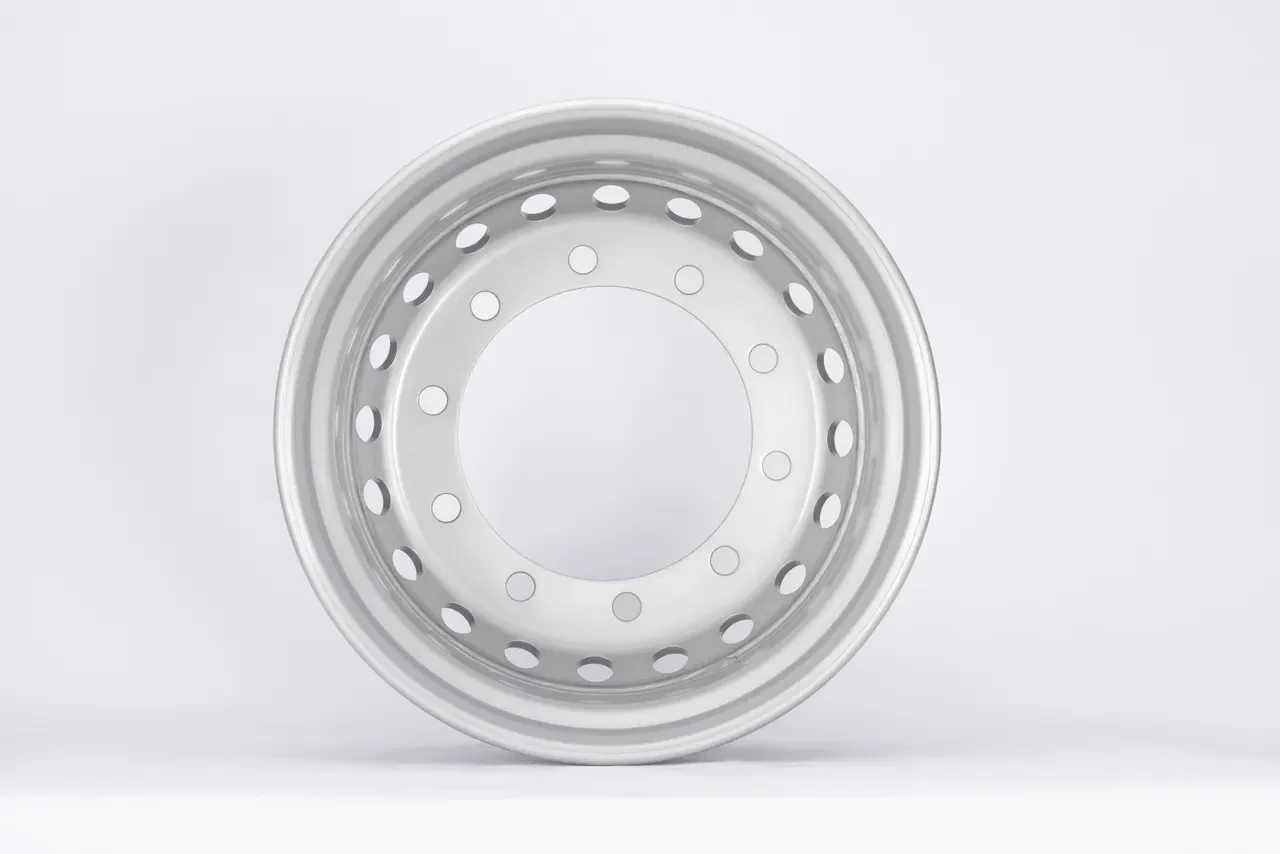

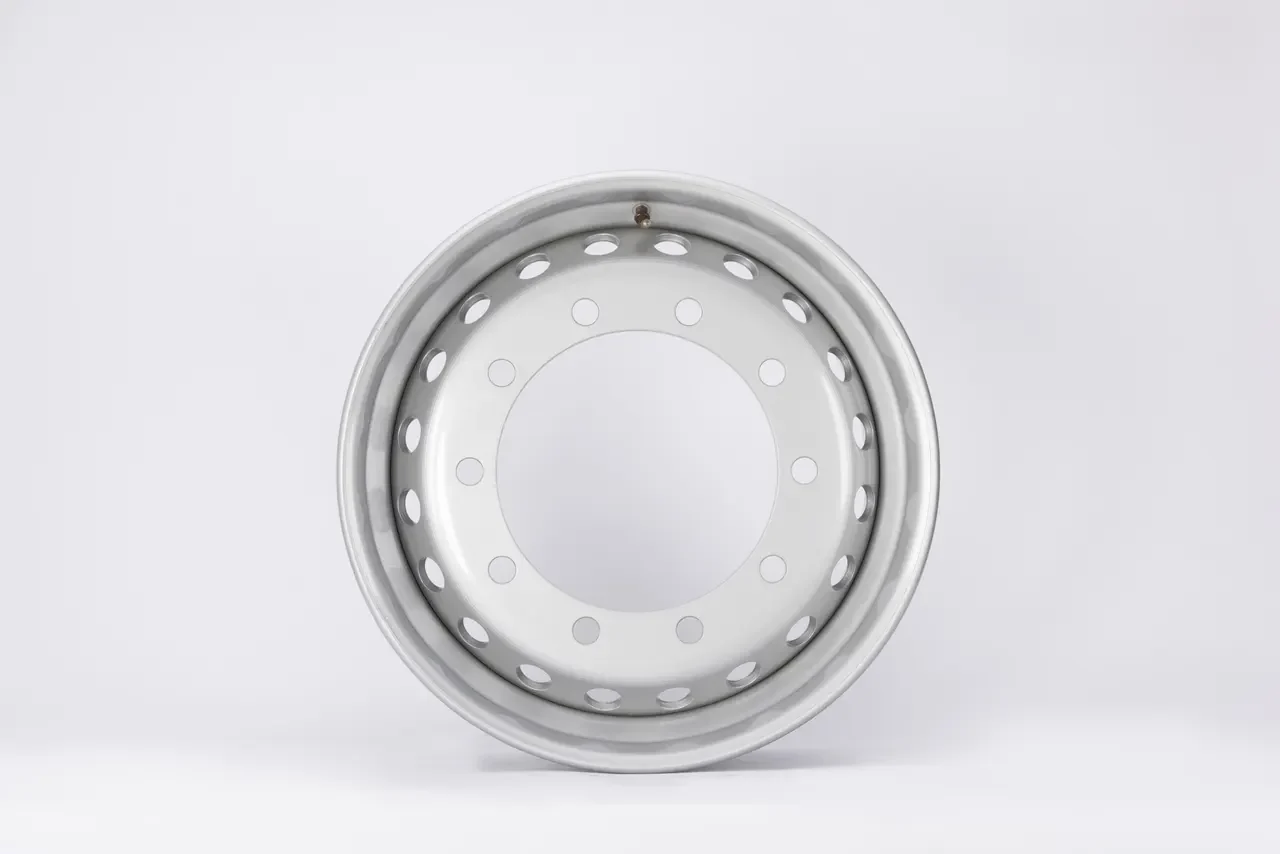

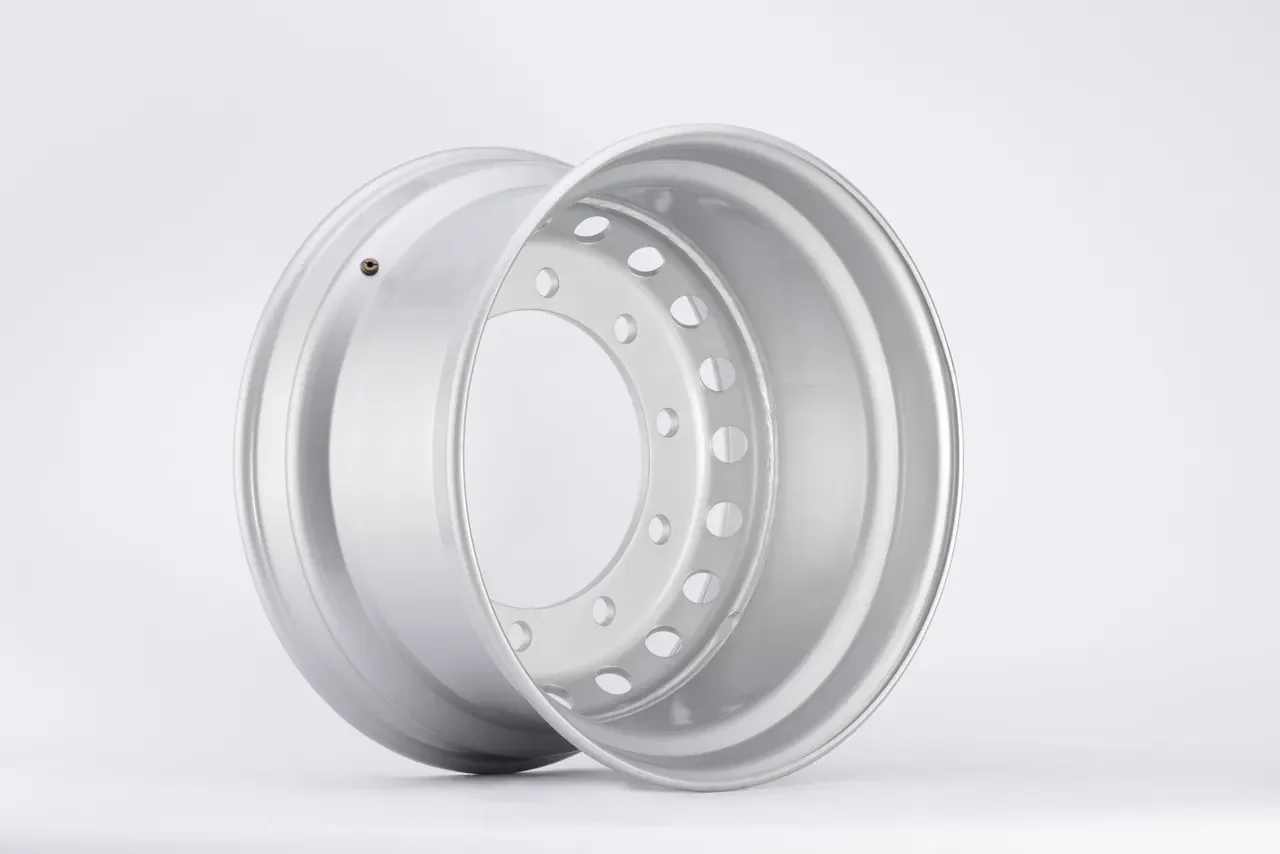

22.5x11.75 20 Hand Holes truck wheel supplied by Resunyou

Home / Wheels and Rims / Tubeless Steel Wheels / 22.5x11.75 20 Hand Holes

22.5×11.75(20) is a steel rim designed for heavy-duty truck applications, featuring a 20-hole wind pattern and a 120mm offset. It is built to support high load ratings and is compatible with

Overview

22.5×11.75(20) is a steel rim designed for heavy-duty truck applications, featuring a 20-hole wind pattern and a 120mm offset. It is built to support high load ratings and is compatible with standard 22.5 inch tyres. The rim profile ensures stable mounting and even load distribution on the axle, suitable for long-haul and regional transport operations.

ISO9001
ISO/TS16949
CCC
E-mark
DOT
GSO/GCC
SONCAP
INMETRO
NOM

What 22.5x11.75 20 Hand Holes Gives the Operator

120mm offset provides balanced clearance and stability on drive and trailer axles

20-φ36 wind hole design improves heat dissipation and rim strength under heavy loads

10-φ26 bolt pattern with φ335 PCD ensures secure fitment on common truck hubs

V3-20-5 valve type allows reliable air retention and easy maintenance

Center hole of φ281 matches standard hub dimensions for smooth installation

Application Scenarios

Long-haul freight transport on paved highways with consistent axle loading
Regional distribution fleets operating on mixed road surfaces with frequent loading cycles
Heavy-duty haulage where rim durability and load capacity are critical

Who It Is For

Truck wheel importers sourcing steel rims for container shipments
Fleet operators replacing rims on 22.5 inch wheels with high load requirements
Distributors needing a standard rim with consistent fitment across multiple truck brands

What It Is Meant To Fix

Rims that warp or fail under repeated high load and temperature stress

Misalignment between rim and hub due to incorrect center hole or bolt pattern

Air leakage from improper valve fit or weak rim structure

Incompatibility with standard tyre sizes due to incorrect rim width or profile

Published Data For 22.5x11.75 20 Hand Holes

These are the figures published for this product. Anything not listed here is confirmed in writing before an order.

Model 22.5×11.75
Rated Load 4250kg
Distributed Circle (PCD) φ335
Bolt Hole 10-φ26
Center Hole φ281
Screw Hole Type 1×45°
Offset 120
Wind Hole Type 20-φ36
Valve Type V3-20-5

Technical Features

Rim size 22.5×11.75 with 20-φ36 wind hole configuration for enhanced structural integrity
Rated load capacity of 4250kg per rim, suitable for heavy-duty axle applications
10-φ26 bolt hole pattern with φ335 PCD for compatibility with common truck hubs
120mm offset for optimal wheel alignment and reduced stress on suspension
V3-20-5 valve type integrated into the rim for reliable inflation and pressure retention

Customisation

Rim finish available in standard black or zinc-coated for corrosion resistance
Custom marking on rim flange available upon request for brand or fleet identification
Container loading can include multiple rim sizes and patterns in one shipment

Quality Control

Rim profile verified against dimensional standards during production
Bolt hole and center hole dimensions checked for consistency across batches
Surface finish inspected for cracks, burrs, or imperfections before coating
Production conducted under ISO9001 and ISO/TS16949 systems

How It Compares

Compared with A lighter alloy rim with lower load rating This steel rim offers higher load capacity and better durability under sustained heavy use
Compared with A rim with fewer wind holes The 20-hole design improves heat dissipation and rim rigidity during long hauls

Getting the Most Out Of It

Install only on axles that match the 22.5 inch tyre size and 10-φ26 bolt pattern
Ensure the hub center hole matches φ281 to prevent misalignment and vibration
Use the correct torque specification when tightening bolts to avoid rim deformation
Inspect the rim surface and valve area regularly for damage or corrosion
