Nylon Cable glands

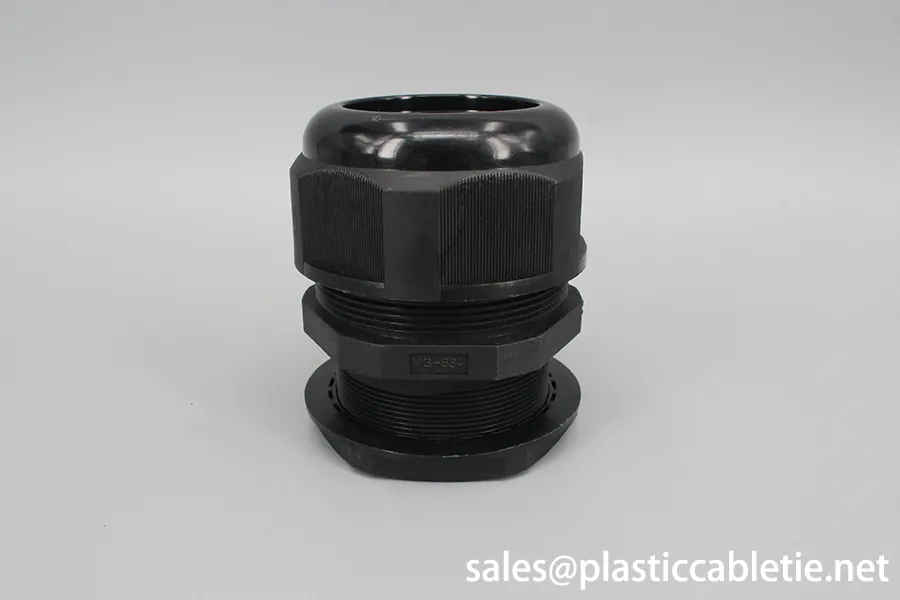

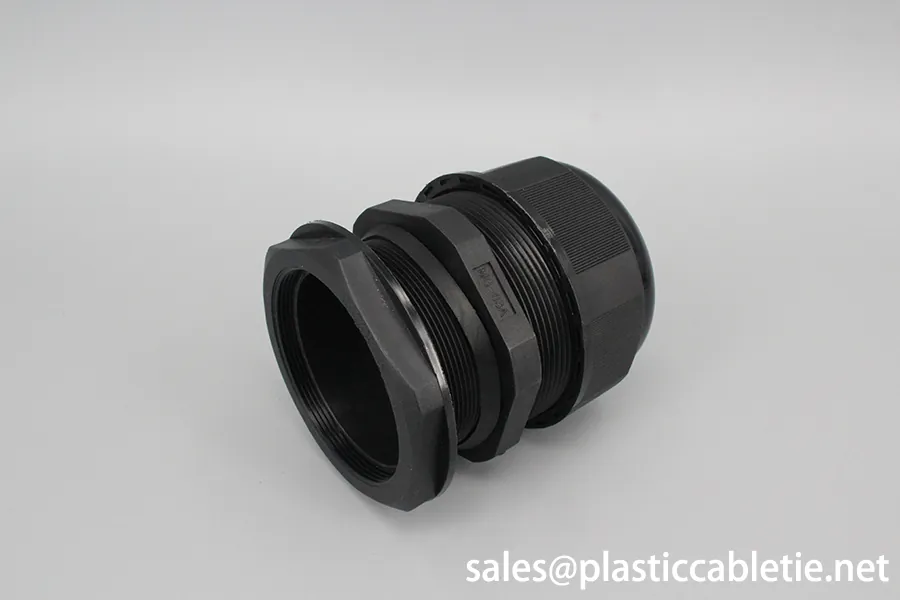

MG Series full different size grey white RAL7035 and black nylon waterproof cable glands

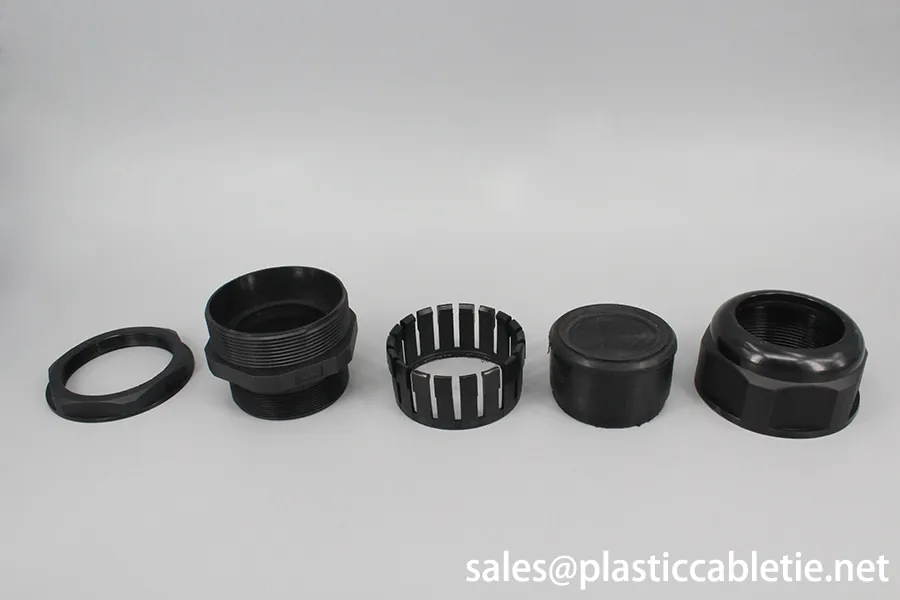

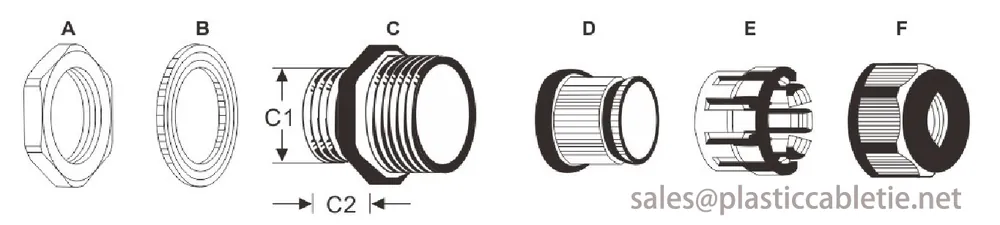

| Material | Nylon PA66(Flammability UL94V-2)for A,C,E,F parts(accept to customize flammability UL 94V-0 ).EPDM rubber for B,D parts(accept to customize resist high temperature rubber,resist strong acid/alkali,etc) |
|---|---|
| IP degree | IP68 |
| Working temperature | -40℃ to 100℃ |
| Feature | The special design for claw and seal nut can hold cable steady,the usage range of cable diameter wider,it’s harder to pull cable out.Resistant to salt water,weak acid,alcohol,oil,grease,etc. |
| Colours | Black,Grey,other color available upon request. |
Free sample · No MOQ on common products · Usually within 15 days · ISO9001, SGS, CE, RoHS, REACH
Specification
Special specification can be customized.

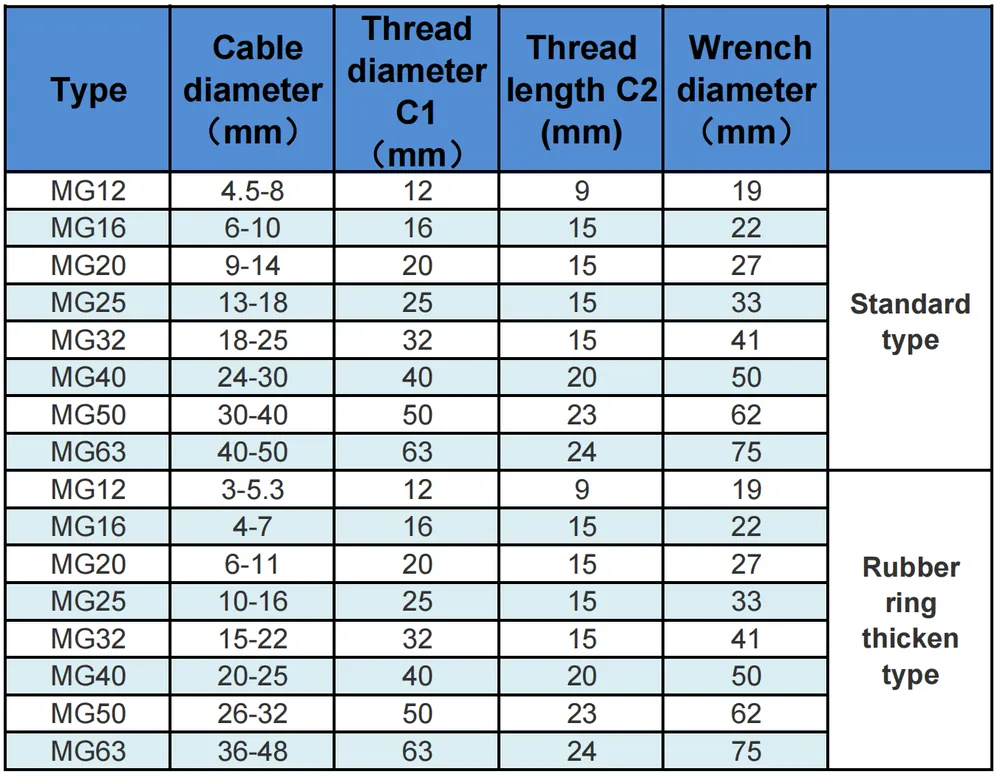

| Type | Cable diameter (mm) | Thread diameter C1(mm) | Thread length C2 (mm) | Wrench diameter (mm) | |
| MG12 | 4.5-8 | 12 | 9 | 19 | Standard type |
| MG16 | 6-10 | 16 | 15 | 22 | |
| MG20 | 9-14 | 20 | 15 | 27 | |
| MG25 | 13-18 | 25 | 15 | 33 | |
| MG32 | 18-25 | 32 | 15 | 41 | |
| MG40 | 24-30 | 40 | 20 | 50 | |
| MG50 | 30-40 | 50 | 23 | 62 | |
| MG63 | 40-50 | 63 | 24 | 75 | |
| MG12 | 3-5.3 | 12 | 9 | 19 | Rubber ring thicken type |
| MG16 | 4-7 | 16 | 15 | 22 | |
| MG20 | 6-11 | 20 | 15 | 27 | |
| MG25 | 10-16 | 25 | 15 | 33 | |
| MG32 | 15-22 | 32 | 15 | 41 | |
| MG40 | 20-25 | 40 | 20 | 50 | |
| MG50 | 26-32 | 50 | 23 | 62 | |
| MG63 | 36-48 | 63 | 24 | 75 |
Details of product
Related Products
Nylon Cable glandsPG Series IP68 high quality fixed waterproof Nylon Gray Black Cable Gland with CE
Nylon Cable glandsDEMOELE Hot sale China manufactory application IP68 waterproof nylon NPT PG Metric G thread cable glands size with a dusty proof cap
Nylon Cable glandsNew Material black and grey white IP68 waterproof Nylon Right Angle Elbow Cable Glands with CE certificate
Nylon Cable glandsCE Approved nylon PA material black and grey color IP68 spiral Waterproof PG Cable Glands With Strain Relief
Nylon Cable glandsMetric Series high quality waterproof IP68 closed seal fixed nylon cable glands for different sizeFrequently Asked Questions
Can MG Series full different size grey white RAL7035 and black be made in another size or colour?
The table on this page shows only part of the range. Tell us the size and colour you need and we will confirm it. If you want a different design we can make a new mould for you.
Can you print our logo, text, barcode or serial number on it?
Yes, on marker ties, tags and seals. Send us your artwork and we will send a proof before production.
Is a sample available before we order?
Samples are free. For common products the sample lead time is about 1-2 days.
What is the packing?
100-1000 pcs per plastic bag plus carton as standard. Neutral, ODM and OEM packing are also available.
What is the lead time and MOQ?
Usually within 15 days depending on quantity. There is no MOQ for common products.
