Wire Rope Sleeves

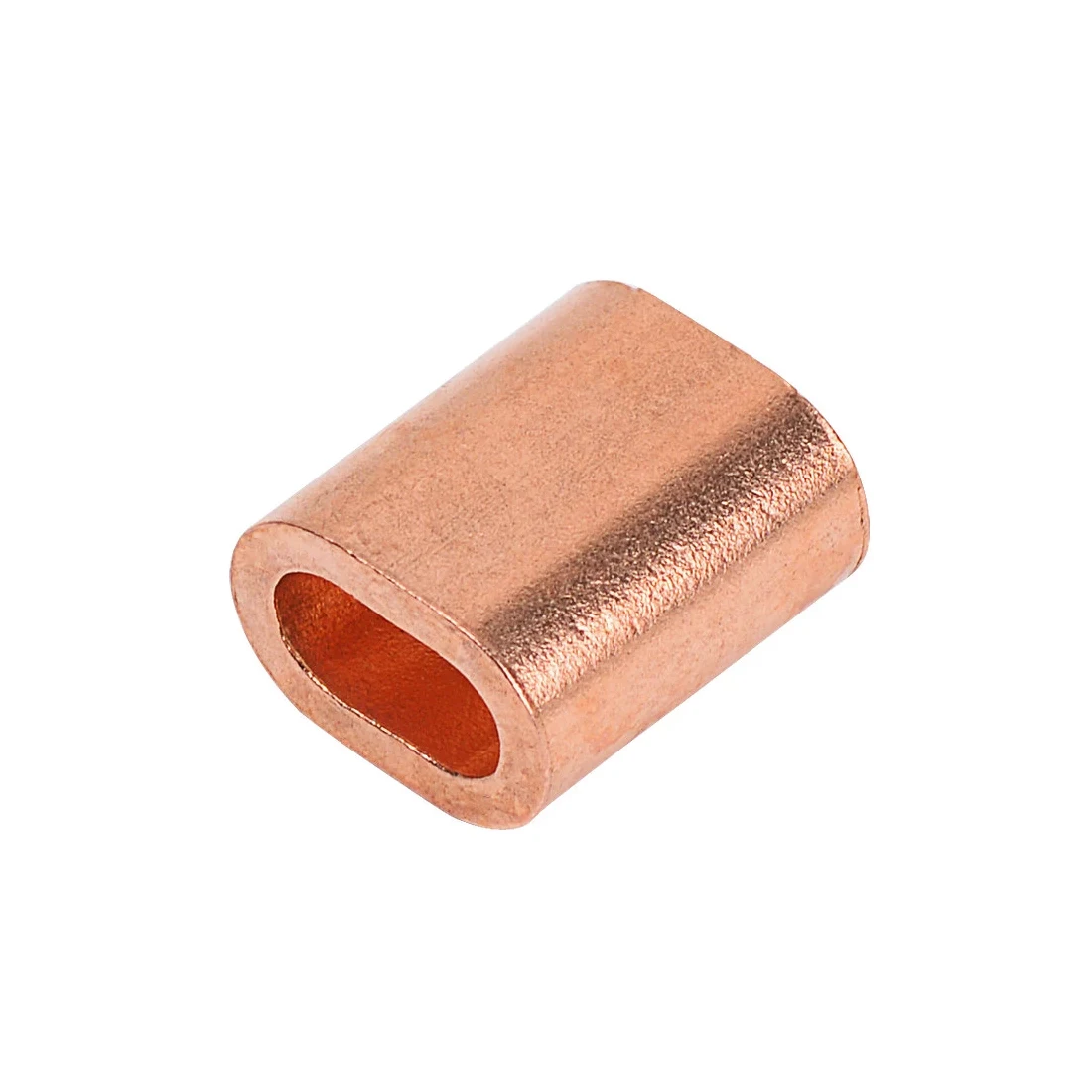

Aluminium Ferrules DIN3093 / Oval Wire Rope Sleeves
Aluminium Ferrules DIN3093 / Oval Wire Rope Sleeves is supplied by Kailipu as part of the Wire Rope Sleeves family from Qingdao, and is quoted against the size, capacity and finish your requirement calls for.

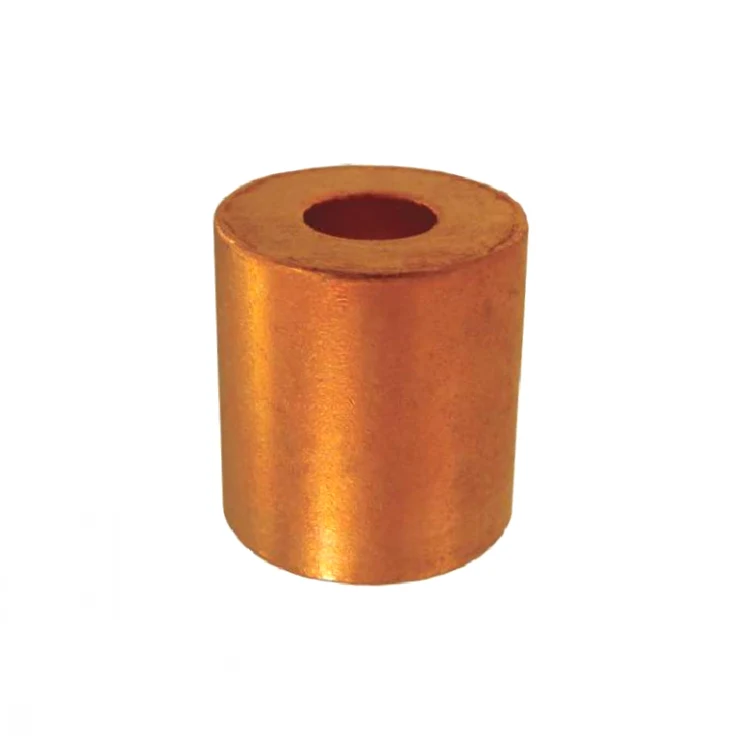

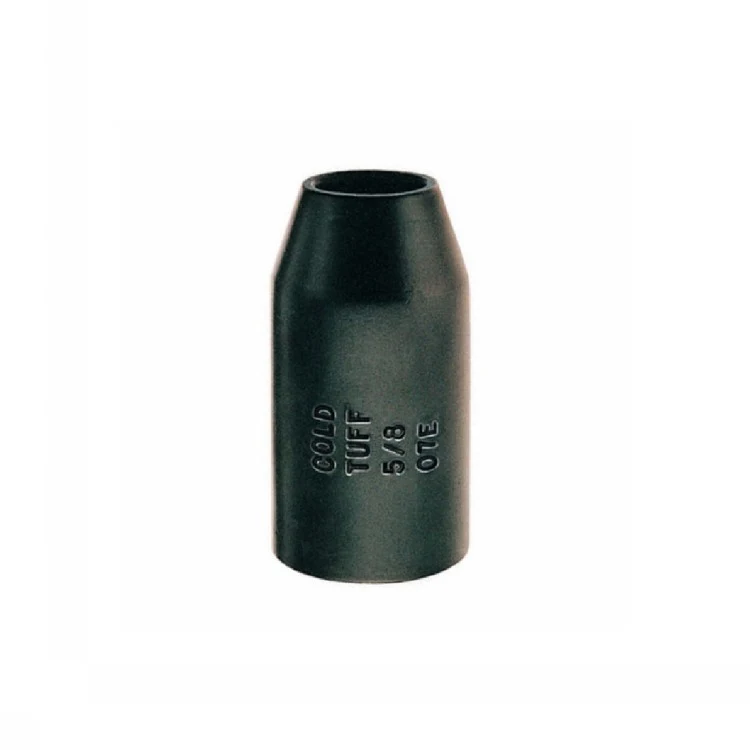

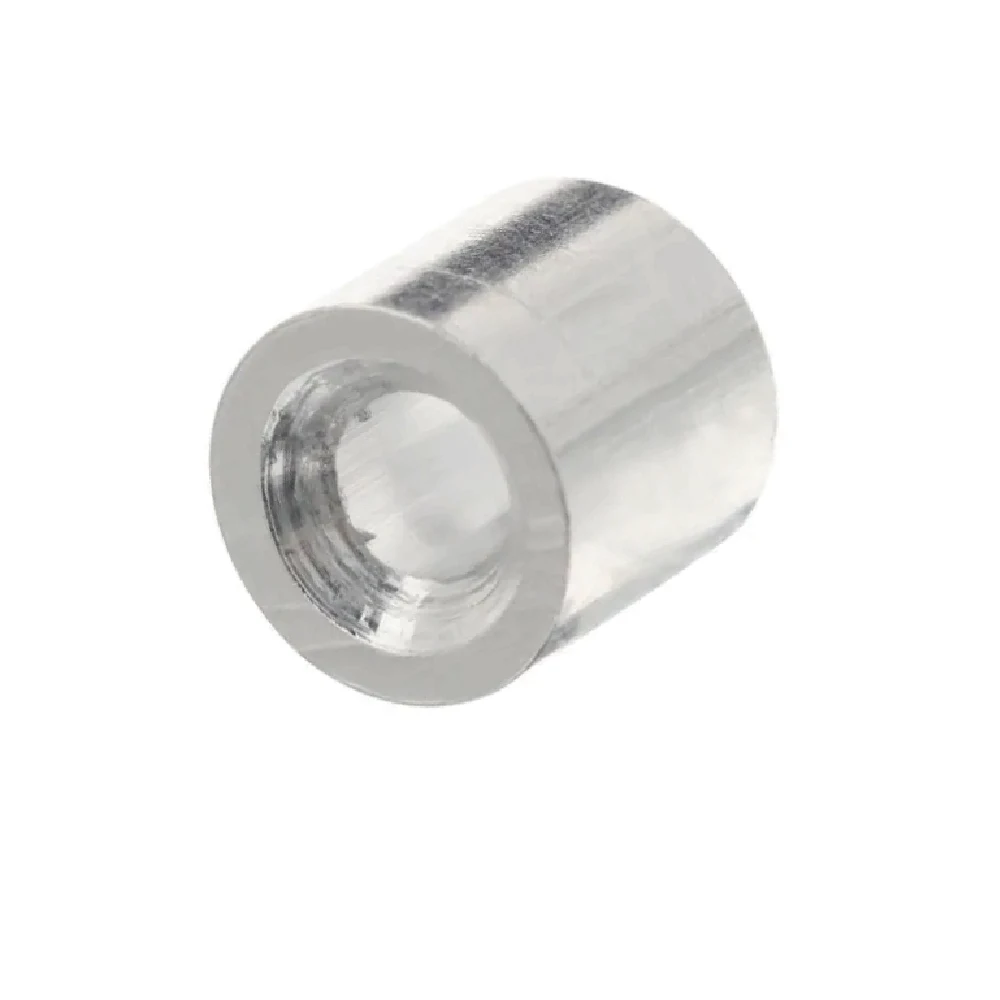

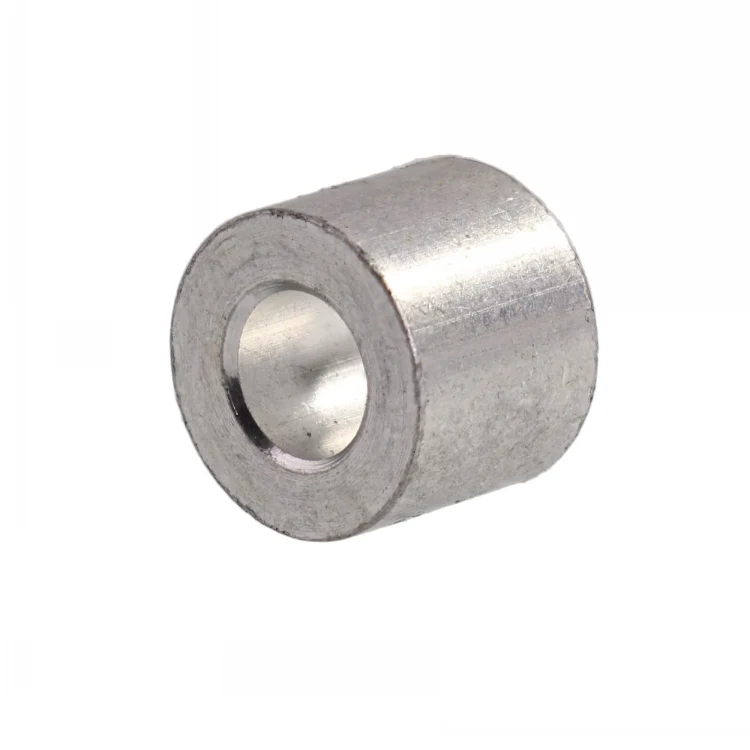

10 sleeve types from 1 mm to 60 mm in oval DIN3090, US round stop button, and hourglass profiles. Aluminum, copper, stainless steel. EN 10204 3.1 MTC
Specifications
| Material | High-grade aluminium |
|---|---|
| Standard | DIN3093 EN 13411-3 |
| Size range | 1mm to 60mm wire rope diameter |
| Weight range | 0.098 kg per 1000pcs to 2314 kg per 1000pcs |
| Length | 5mm to 168mm |
Specification values are taken from the supplier's published product data. Sizes and capacities outside the listed range are quoted on request.
Key features
- DIN3093 and EN 13411-3 compliant for international safety and performance consistency
- High-grade aluminium construction resists corrosion in indoor and outdoor environments
- Secure wire rope termination with no risk of fraying or slippage under load
- Lightweight compared to steel ferrules, reducing overall rigging weight
Typical applications
- Rigging and lifting contractors needing reliable wire rope terminations for crane and hoist systems
- Marine and offshore teams specifying stainless steel sleeves for saltwater exposure
- Construction firms building temporary structures with wire rope rigging and requiring consistent termination quality
Need this line on an order?
Send the size, the capacity or the whole bill of materials. You will get a quotation and a lead time rather than a catalogue PDF.
